MAX14906ATM+ - Analog Devices

Description: Power Management Specialized - PMIC Quad Industrial Digital Input / Digital Output

Download MAX14906ATM+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

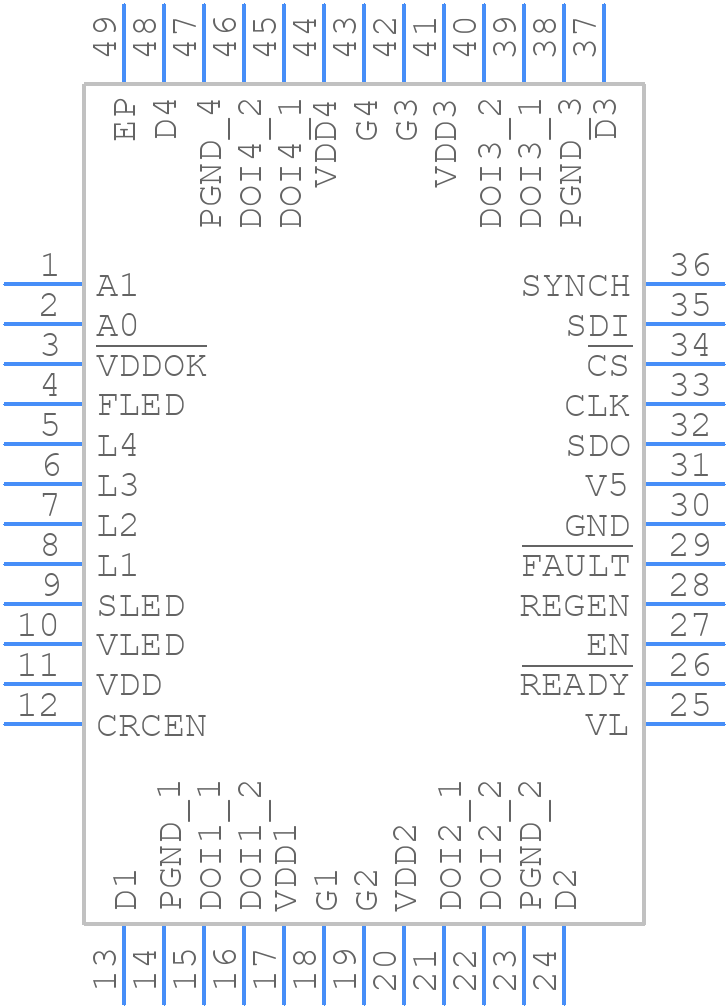

MAX14906ATM+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14906ATM+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX14906ATM+
click to zoom
3D Models
MAX14906ATM+ - Analog Devices - 3D model - Quad Flat No-Lead - MAX14906ATM+
click to zoom

MAX14906ATM+ Details

  • Manufacturer Part Number:

    MAX14906ATM+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LFCSP-7X7X0.75

  • Package Description:

    TQFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LFCSP-7X7X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-05-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    DIGITAL I/O MODULE

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    IEC 61131-2

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX14906ATM+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14906ATM+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and other components.
  • To ensure the MAX14906ATM+ is properly powered, make sure to provide a clean and stable power supply voltage within the recommended range of 3.0V to 5.5V. Also, decouple the power supply lines with 0.1uF and 10uF capacitors to reduce noise and ripple. Additionally, ensure that the power supply can provide enough current to support the device's operating current, which is typically around 10mA.
  • The MAX14906ATM+ has a maximum data transfer rate of 100Mbps, making it suitable for high-speed applications such as industrial automation, medical devices, and automotive systems.
  • Yes, the MAX14906ATM+ is designed to operate in harsh environments, including industrial and automotive applications. It has an operating temperature range of -40°C to +125°C, and is also resistant to electromagnetic interference (EMI) and radio-frequency interference (RFI). However, it's still important to follow proper design and layout guidelines to ensure reliable operation in these environments.
  • To troubleshoot issues with the MAX14906ATM+, start by checking the power supply voltage and ensuring it's within the recommended range. Next, verify that the device is properly configured and that the clock and data signals are correct. Use an oscilloscope to check the signal waveforms and look for any signs of noise or distortion. If the issue persists, consult the datasheet and application notes for further guidance, or contact Analog Devices' technical support team for assistance.
