MAX14917AFM+ - Analog Devices

Description: Power Switch ICs - Power Distribution Industrial Octal High Side Driver with Diagnostics

Download MAX14917AFM+ Model

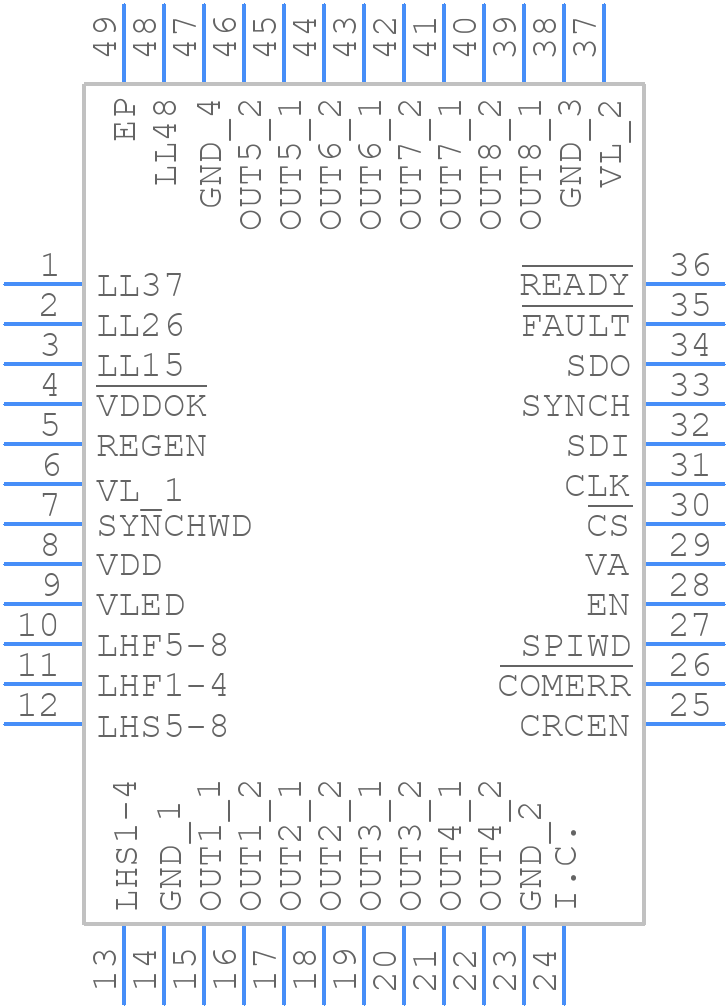

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX14917AFM+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - F486A6F+1
click to zoom
3D Models
MAX14917AFM+ - Analog Devices  - 3D model - Quad Flat No-Lead - F486A6F+1
click to zoom

MAX14917AFM+ Details

  • Manufacturer Part Number:

    MAX14917AFM+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LFCSP-6X6X0.9

  • Package Description:

    F2CQFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LFCSP-6X6X0.9

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-06-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Built-in Protections:

    TRANSIENT; THERMAL

  • Driver Number of Bits:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    1 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    24 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    30 µs

  • Turn-on Time:

    30 µs

  • Width:

    6 mm

MAX14917AFM+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14917AFM+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces to reduce noise and EMI.
  • The MAX14917AFM+ requires a single 3.3V power supply, and it's recommended to use a low-noise, low-dropout regulator (LDO) to power the device. The power sequencing requirements involve powering up the device in the following order: VCC, then VDD, and finally the digital inputs. It's also important to ensure that the power supply can provide enough current to support the device's operating current.
  • The maximum cable length supported by the MAX14917AFM+ depends on the specific application and the type of cable used. However, as a general rule, it's recommended to keep the cable length as short as possible to minimize signal attenuation and distortion. For longer cable lengths, it's recommended to use a cable with a higher gauge wire and to add signal conditioning circuits to compensate for signal loss.
  • To troubleshoot common issues with the MAX14917AFM+, it's recommended to start by checking the power supply and ensuring that it's stable and within the recommended operating range. Next, check the signal integrity by measuring the signal levels and frequencies using an oscilloscope or a logic analyzer. If the issue persists, check the device's configuration and programming to ensure that it's set up correctly. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • The MAX14917AFM+ has a maximum operating temperature range of -40°C to +125°C. To ensure the device operates within this range, it's recommended to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink or a thermal pad, and by ensuring good airflow around the device. Additionally, it's recommended to avoid exposing the device to high temperatures during storage or handling.
