MAX14919AAUP+ - Analog Devices

Description: Industrial-Protected Quad-Channel Low-Side Switch

Download MAX14919AAUP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

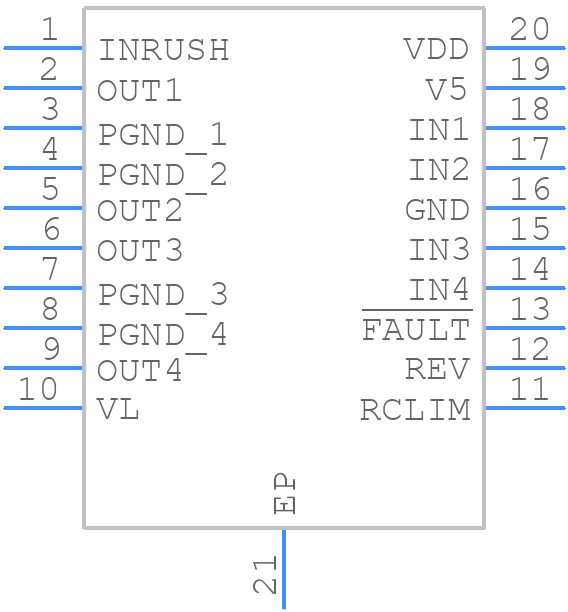

MAX14919AAUP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U20E+3C
click to zoom
3D Models
MAX14919AAUP+ - Analog Devices  - 3D model - Small Outline Packages - U20E+3C
click to zoom

MAX14919AAUP+ Details

  • Manufacturer Part Number:

    MAX14919AAUP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-11-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Built-in Protections:

    SHORT CIRCUIT; OVERLOAD; TRANSIENT

  • Driver Number of Bits:

    4

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    0.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    7 V

  • Supply Voltage-Nom:

    24 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.3 µs

  • Turn-on Time:

    0.3 µs

  • Width:

    4.4 mm

MAX14919AAUP+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX14919AAUP+ can be found in the MAX14919 Evaluation Kit documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the datasheet that highlights key considerations for signal integrity and thermal management.
  • The MAX14919AAUP+ is a highly configurable device, and configuration depends on the specific application requirements. Engineers can use the MAX14919 Evaluation Kit software to configure the device and evaluate its performance. The software provides a graphical user interface to set parameters such as voltage levels, current limits, and fault detection thresholds.
  • The MAX14919AAUP+ has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat effectively. Engineers should ensure that the thermal plane is connected to a heat sink or a metal layer on the PCB to prevent overheating. The datasheet provides thermal resistance and power dissipation data to help engineers design an effective thermal management strategy.
  • Analog Devices provides a troubleshooting guide in the datasheet that covers common issues and their solutions. Engineers can also use the MAX14919 Evaluation Kit software to debug and troubleshoot the device. Additionally, Analog Devices offers technical support and application notes that provide guidance on troubleshooting and optimizing the device's performance.
  • The MAX14919AAUP+ has built-in ESD protection and latch-up prevention measures. The device features ESD protection diodes on all pins, and the internal circuitry is designed to prevent latch-up. However, engineers should still follow proper ESD handling procedures when handling the device, and ensure that the PCB design includes adequate ESD protection and latch-up prevention measures.
