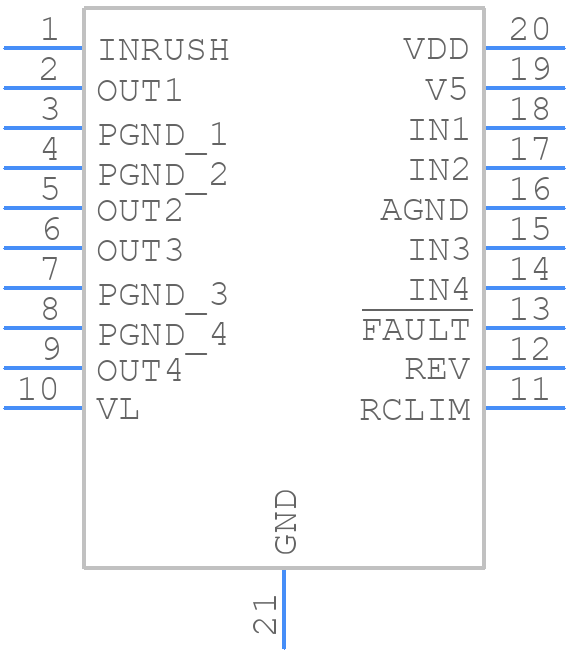

MAX14919AUP+T - Analog Devices

MAX14919AUP+T Details

• Manufacturer Part Number:

  MAX14919AUP+T

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  20-TSSOP_4.4-4.4_MM

• Package Description:

  TSSOP-20

• Pin Count:

  20

• Manufacturer Package Code:

  20-TSSOP_4.4-4.4_MM

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2020-11-25

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Built-in Protections:

  SHORT CIRCUIT; OVERLOAD; TRANSIENT

• Driver Number of Bits:

  4

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-XQCC-N20

• JESD-609 Code:

  e3

• Length:

  6.5 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  4

• Number of Terminals:

  20

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current Flow Direction:

  SINK

• Output Peak Current Limit-Nom:

  0.8 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Equivalence Code:

  TSSOP20,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.2 mm

• Supply Current-Max:

  3 mA

• Supply Voltage-Max:

  60 V

• Supply Voltage-Min:

  7 V

• Supply Voltage-Nom:

  24 V

• Supply Voltage1-Max:

  5.5 V

• Supply Voltage1-Min:

  4.5 V

• Supply Voltage1-Nom:

  5 V

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Turn-off Time:

  0.3 µs

• Turn-on Time:

  0.3 µs

• Width:

  4.4 mm
