MAX14930EAWE+ - Analog Devices

Description: Digital Isolators 2.5kVrms 25Mbps Four Channel Digital Isolator

Download MAX14930EAWE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

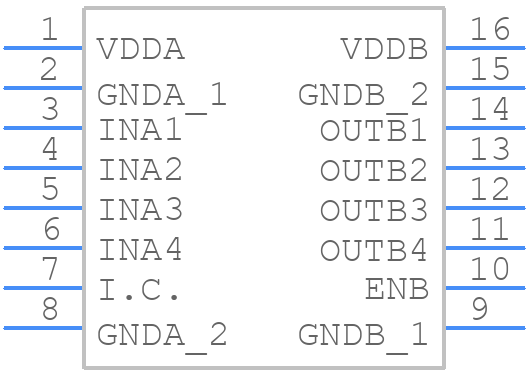

Symbol
MAX14930EAWE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14930EAWE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - W16M+8_1
click to zoom
3D Models
MAX14930EAWE+ - Analog Devices - 3D model - Small Outline Packages - W16M+8_1
click to zoom

MAX14930EAWE+ Details

  • Manufacturer Part Number:

    MAX14930EAWE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2014-10-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MAX14930EAWE+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX14930EAWE+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to place it as close as possible to the VCC pin.
  • To configure the MAX14930EAWE+ for I2C communication, you need to connect the SCL pin to the I2C clock line, the SDA pin to the I2C data line, and the ADDR pin to a logic level that sets the device address. You also need to ensure that the I2C bus is properly terminated and that the clock frequency is within the specified range.
  • The MAX14930EAWE+ can sink or source up to 25mA of current per GPIO pin, and up to 50mA of current per port (A or B). However, the total current drawn from the device should not exceed 200mA.
  • To use the interrupt feature of the MAX14930EAWE+, you need to configure the interrupt mask register to enable interrupts for specific events, such as input state changes or output state changes. You also need to connect the INT pin to a microcontroller or other device that can handle the interrupt signal.
  • The operating temperature range of the MAX14930EAWE+ is -40°C to +85°C. However, the device can be stored at temperatures between -65°C and +150°C.
