MAX14930FAWE+ - Analog Devices

Description: Digital Isolators 2.5kVrms 150Mbps Four Channel 2/2 Digital Isolator

Download MAX14930FAWE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

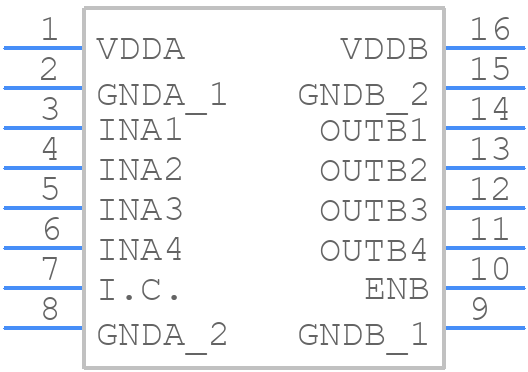

Symbol
MAX14930FAWE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14930FAWE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - W16M+8_1
click to zoom
3D Models
MAX14930FAWE+ - Analog Devices - 3D model - Small Outline Packages - W16M+8_1
click to zoom

MAX14930FAWE+ Details

  • Manufacturer Part Number:

    MAX14930FAWE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2014-10-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MAX14930FAWE+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX14930FAWE+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to place it as close as possible to the VCC pin.
  • To ensure reliable communication between the MAX14930FAWE+ and the microcontroller, make sure to use a proper SPI protocol, with a clock frequency not exceeding 10MHz, and to use a pull-up resistor on the CS pin. Also, ensure that the microcontroller's SPI pins are 5V tolerant, as the MAX14930FAWE+ operates at 5V.
  • The maximum cable length supported by the MAX14930FAWE+ depends on the specific application and the type of cable used. However, as a general guideline, the MAX14930FAWE+ can support cable lengths up to 10 meters at a data rate of 100kbps. For longer cable lengths, it's recommended to use a repeater or a signal conditioner.
  • The MAX14930FAWE+ has built-in error detection and fault handling mechanisms. For example, it has a parity bit for data transmission, and it can detect errors such as CRC errors, framing errors, and overrun errors. In case of an error, the MAX14930FAWE+ will set the corresponding error flag, and the microcontroller can take appropriate action to recover from the error.
  • Yes, the MAX14930FAWE+ can be used in a hot-swappable application. It has a built-in power-on reset circuit that ensures a clean power-up sequence, and it can detect the insertion and removal of the cable. However, it's recommended to use a proper hot-swap controller and to follow the recommended PCB layout and design guidelines to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14930FAWE+ Overview

Use the download button to access the MAX14930FAWE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
