MAX14932DASE+ - Analog Devices

Description: MAX14932DASE+ Maxim, PCB SMT, 4-Channel Digital Isolator 1Mbit/s, 2.75 kVrms, 16-Pin SOIC

Download MAX14932DASE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

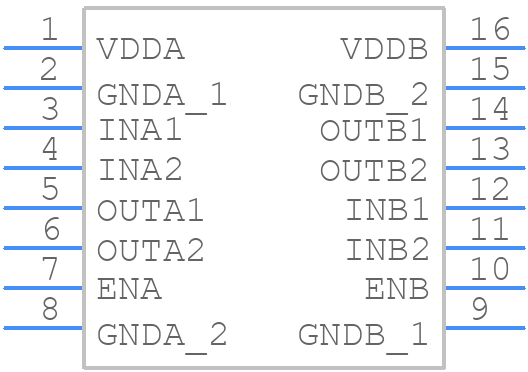

MAX14932DASE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14932DASE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S16M+11
click to zoom
3D Models
MAX14932DASE+ - Analog Devices - 3D model - Small Outline Packages - S16M+11
click to zoom

MAX14932DASE+ Details

  • Manufacturer Part Number:

    MAX14932DASE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2014-10-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX14932DASE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14932DASE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and other components.
  • The MAX14932DASE+ requires a single 3.3V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirements involve powering up the device in the following order: VCC, then VDD, and finally the digital inputs. It's also important to ensure that the power supply is stable and noise-free to prevent errors and ensure reliable operation.
  • The MAX14932DASE+ has an operating temperature range of -40°C to +125°C. The device's performance may be affected at extreme temperatures, with potential decreases in accuracy and increases in power consumption. It's recommended to operate the device within the specified temperature range to ensure optimal performance and reliability.
  • To troubleshoot common issues with the MAX14932DASE+, start by checking the power supply and ensuring it's stable and within the recommended range. Verify that the device is properly configured and that the communication protocol is correct. Check for noise or interference on the analog inputs and digital communication lines. Use a logic analyzer or oscilloscope to debug the communication protocol and identify any errors. Consult the datasheet and application notes for specific troubleshooting guidelines and recommendations.
  • The MAX14932DASE+ has built-in ESD protection on all pins, with a human-body model (HBM) rating of ±2kV and a charged-device model (CDM) rating of ±1kV. To prevent latch-up, it's recommended to use a low-impedance power supply, avoid overvoltage conditions, and ensure that the device is properly powered down before disconnecting the power supply.
