MAX15096GWE+T - Analog Devices

Description: Hot Swap Voltage Controllers 2.7V to 18V, 6A Integrated Hot-Swap/Electronic Circuit Breaker

Download MAX15096GWE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

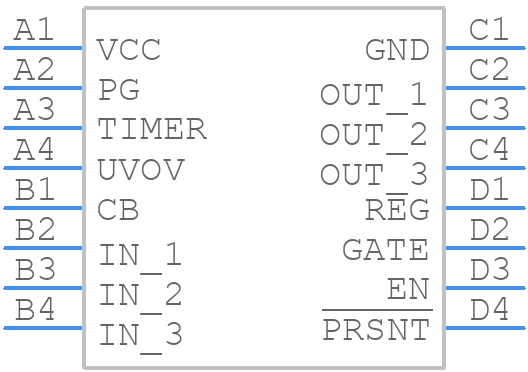

MAX15096GWE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX15096GWE+T - Analog Devices PCB footprint - BGA - BGA - W162J2Z+1
click to zoom
3D Models
MAX15096GWE+T - Analog Devices - 3D model - BGA - W162J2Z+1
click to zoom

MAX15096GWE+T Details

  • Manufacturer Part Number:

    MAX15096GWE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-WLCSP-N/A

  • Package Description:

    WLP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2014-03-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-PBGA-B16

  • Length:

    2.007 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max (Isup):

    0.9 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +0.05V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.007 mm

MAX15096GWE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX15096GWE+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The choice of input and output capacitors for the MAX15096GWE+T depends on the specific application and operating conditions. In general, X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage are recommended. The output capacitor should be chosen based on the desired output ripple and transient response.
  • The MAX15096GWE+T is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to derate the device's power dissipation at higher temperatures to ensure reliable operation.
  • The MAX15096GWE+T has a built-in overcurrent protection feature that can be enabled by connecting the OCSET pin to a resistor and a capacitor. The value of the resistor and capacitor determines the overcurrent threshold and response time. Additionally, an external current sense resistor can be used to monitor the output current and implement overcurrent protection.
  • The recommended input voltage range for the MAX15096GWE+T is 4.5V to 60V, but the device can operate from 4V to 65V. However, the device's performance and efficiency may be affected at input voltages outside the recommended range.
