MAX153CPP+ - Analog Devices

MAX153CPP+ Details

• Manufacturer Part Number:

  MAX153CPP+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

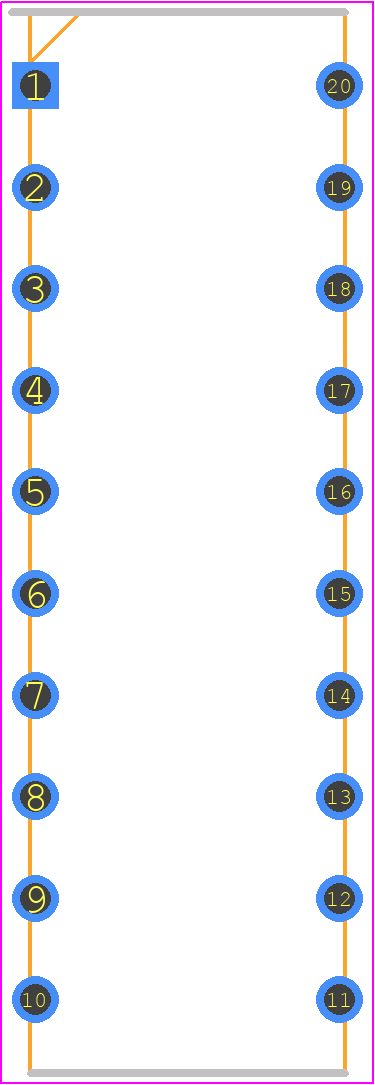

• Part Package Code:

  20-PDIP-300_MIL

• Package Description:

  0.300 INCH, PLASTIC, DIP-20

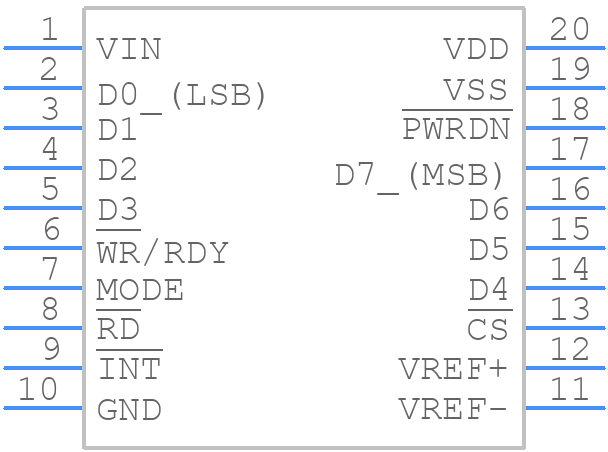

• Pin Count:

  20

• Manufacturer Package Code:

  20-PDIP-300_MIL

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.30

• Date Of Intro:

  1999-05-28

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Analog Input Voltage-Max:

  2.5 V

• Analog Input Voltage-Min:

  -2.5 V

• Conversion Time-Max:

  0.875 µs

• Converter Type:

  ADC, FLASH METHOD

• JESD-30 Code:

  R-PDIP-T20

• JESD-609 Code:

  e3

• Length:

  26.16 mm

• Linearity Error-Max (EL):

  0.39%

• Moisture Sensitivity Level:

  1

• Number of Analog In Channels:

  2

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  70 °C

• Output Bit Code:

  OFFSET BINARY

• Output Format:

  PARALLEL, 8 BITS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP20,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  1 MHz

• Sample and Hold / Track and Hold:

  TRACK

• Seated Height-Max:

  4.572 mm

• Supply Current-Max:

  20 mA

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.62 mm
