MAX16042TP+ - Analog Devices

Description: Supervisory Circuits Dual-/Triple-/Quad-Voltage, Capacitor-Adjustable, Sequencing/Supervisory Circuits

Download MAX16042TP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

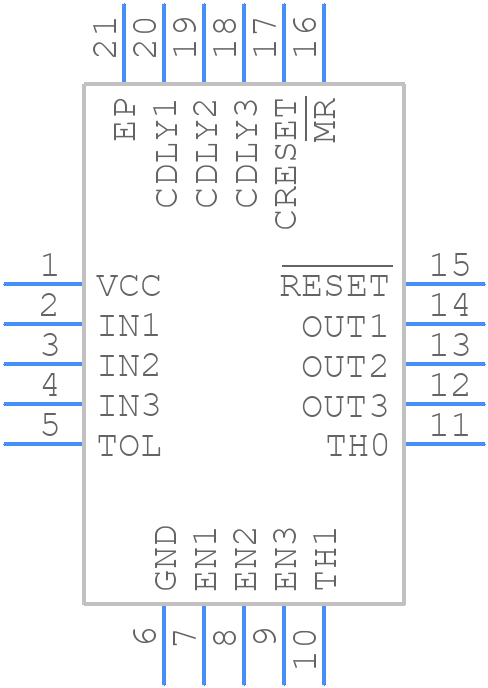

MAX16042TP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16042TP+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2044-2(21-0139)
click to zoom
3D Models
MAX16042TP+ - Analog Devices - 3D model - Quad Flat No-Lead - T2044-2(21-0139)
click to zoom

MAX16042TP+ Details

  • Manufacturer Part Number:

    MAX16042TP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-4X4X0.75

  • Package Description:

    TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2006-08-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.08 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX16042TP+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16042TP+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery or power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The choice of external components depends on the specific application requirements, such as the input voltage range, output voltage, and desired accuracy. A good starting point is to use the component values recommended in the datasheet, and then adjust them based on simulation results or empirical testing. It's also important to consider the tolerance and temperature coefficient of the components.
  • The MAX16042TP+ can handle input voltages up to 36V, but it's recommended to operate it within the specified input voltage range of 4.5V to 36V to ensure optimal performance and accuracy.
  • The MAX16042TP+ has built-in reverse battery protection and overvoltage protection. It can withstand reverse battery connection up to -20V and overvoltage up to 40V without damage. However, it's still recommended to use external protection components, such as a TVS diode or a fuse, to protect the device from extreme voltage transients.
  • The typical startup time for the MAX16042TP+ is around 1ms, but it can vary depending on the input voltage, output voltage, and external component values. It's recommended to check the startup time in the specific application to ensure that it meets the required timing constraints.
