MAX16055EAUB+T - Analog Devices

Description: Ultra-Small, Hex Voltage,Microprocessor Supervisor

Download MAX16055EAUB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

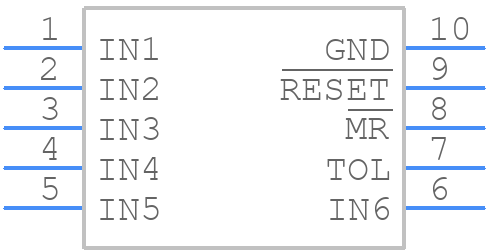

Symbol
MAX16055EAUB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16055EAUB+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10+2
click to zoom
3D Models
MAX16055EAUB+T - Analog Devices - 3D model - Small Outline Packages - U10+2
click to zoom

MAX16055EAUB+T Details

  • Manufacturer Part Number:

    MAX16055EAUB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2009-01-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX16055EAUB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16055EAUB+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The choice of external components depends on the specific application and requirements. For the sense resistor, a low-value resistor (e.g. 1kΩ) is recommended to minimize power consumption. For the capacitors, a 10uF ceramic capacitor is recommended for the input capacitor, and a 1uF ceramic capacitor is recommended for the output capacitor. Refer to the datasheet and application notes for more detailed guidance.
  • The MAX16055EAUB+T has an operating temperature range of -40°C to +125°C. However, the device's performance and accuracy may degrade at extreme temperatures. It's recommended to operate the device within the recommended temperature range for optimal performance.
  • The MAX16055EAUB+T has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage source. The OVP threshold can be set by selecting the appropriate resistor values for the OVP pin. Refer to the datasheet and application notes for more detailed guidance on implementing OVP.
  • The typical startup time for the MAX16055EAUB+T is around 1ms. However, this can vary depending on the input voltage, output load, and other factors. It's recommended to refer to the datasheet and application notes for more detailed information on startup time and power-up sequencing.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

MAX16055EAUB+T Overview

Use the download button to access the MAX16055EAUB+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX16, or try a keyword search, such as Power Management Circuits
