MAX16055FAUB+ - Analog Devices

Description: Supervisory Circuits Ultra-Small, Hex Voltage, Microprocessor Supervisor

Download MAX16055FAUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

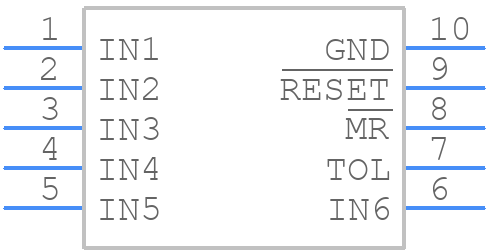

Symbol
MAX16055FAUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16055FAUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX4586EUB+
click to zoom
3D Models
MAX16055FAUB+ - Analog Devices - 3D model - Small Outline Packages - MAX4586EUB+
click to zoom

MAX16055FAUB+ Details

  • Manufacturer Part Number:

    MAX16055FAUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    UMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2009-01-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MANUAL RESET INPUT

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX16055FAUB+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16055FAUB+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The choice of external components depends on the specific application and requirements. For example, the value of the resistors in the voltage divider network depends on the desired output voltage and the input voltage range. The datasheet provides guidelines and equations to help with component selection. Additionally, Analog Devices provides a design tool, the MAX16055 Evaluation Kit, which can help with component selection and layout.
  • The MAX16055FAUB+ has an operating temperature range of -40°C to +125°C. However, the device's performance and accuracy may degrade at extreme temperatures. It's recommended to operate the device within the recommended temperature range for optimal performance.
  • To troubleshoot issues with the MAX16055FAUB+, start by checking the PCB layout and component values to ensure they match the recommended design. Verify that the input voltage is within the specified range and that the device is properly powered. Use a multimeter or oscilloscope to measure the input and output voltages and check for any signs of noise or oscillation. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines or contact Analog Devices' technical support.
  • Yes, the MAX16055FAUB+ is designed to meet the requirements of automotive and industrial standards, including AEC-Q100 and IEC 61508. The device is built with high-reliability materials and manufacturing processes to ensure robustness and fault tolerance. However, it's recommended to consult the datasheet and application notes for specific details on compliance and to verify that the device meets the requirements of the target application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX16055FAUB+ Overview

Use the download button to access the MAX16055FAUB+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX16, or try a keyword search, such as Power Management Circuits
