MAX16151AWT+ - Analog Devices

Description: High Voltage Pushbutton On/Off Controller

Download MAX16151AWT+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

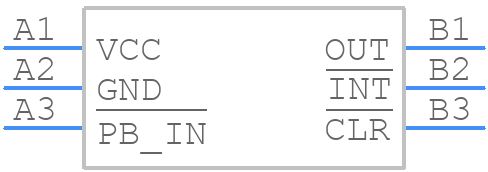

MAX16151AWT+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16151AWT+ - Analog Devices PCB footprint - BGA - BGA - W60C1+2-
click to zoom
3D Models
MAX16151AWT+ - Analog Devices - 3D model - BGA - W60C1+2-
click to zoom

MAX16151AWT+ Details

  • Manufacturer Part Number:

    MAX16151AWT+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-WLCSP-N/A

  • Package Description:

    WLP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-10-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    PUSHBUTTON ON/OFF CONTROLLER

  • JESD-30 Code:

    R-XBGA-B6

  • Length:

    1.238 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max (Isup):

    0.04 mA

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    0.828 mm

MAX16151AWT+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16151AWT+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery or power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The MAX16151AWT+ does not require calibration for voltage monitoring. The device has an internal voltage reference and a high-accuracy ADC that provides accurate voltage measurements without the need for calibration. However, it's recommended to follow the datasheet guidelines for setting the voltage threshold and hysteresis levels for accurate overvoltage and undervoltage detection.
  • The MAX16151AWT+ is designed to monitor voltages up to 5V. If you need to monitor higher voltages, you can use an external voltage divider network to scale down the voltage to within the 0V to 5V range of the device. However, this may affect the accuracy of the voltage measurement, and you should consult the datasheet and application notes for guidance on using voltage dividers with the MAX16151AWT+.
  • The FAULT pin is an open-drain output that goes low when the device detects an overvoltage or undervoltage condition. You can connect the FAULT pin to a microcontroller or other logic device to detect fault conditions. Make sure to use a pull-up resistor to VCC to ensure the FAULT pin is high when there is no fault condition.
  • The typical response time of the MAX16151AWT+ to an overvoltage or undervoltage condition is around 10μs. This is the time it takes for the device to detect the fault condition and assert the FAULT pin. However, the actual response time may vary depending on the system design and the specific application.
