MAX16166AWPH+T - Analog Devices

Description: Highly Integrated, 4-Channel Sequencer and Supervisor

Download MAX16166AWPH+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

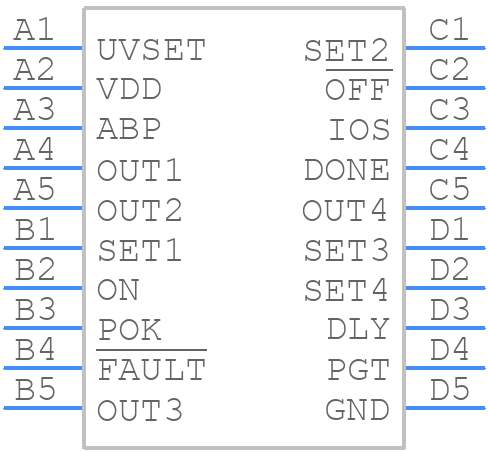

MAX16166AWPH+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16166AWPH+T - Analog Devices PCB footprint - BGA - BGA - 20-WLCSP-N/A_2023-2
click to zoom
3D Models
MAX16166AWPH+T - Analog Devices - 3D model - BGA - 20-WLCSP-N/A_2023-2
click to zoom

MAX16166AWPH+T Details

  • Manufacturer Part Number:

    MAX16166AWPH+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-WLCSP-N/A

  • Package Description:

    WLP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-12-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SEQUENCER

  • JESD-30 Code:

    R-XBGA-B20

  • Length:

    2.027 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,4X5,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max (Isup):

    0.17 mA

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +0.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.627 mm

MAX16166AWPH+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16166AWPH+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • Calibration of the MAX16166AWPH+T involves adjusting the internal voltage and current sense resistors to match the specific battery chemistry and application requirements. This can be done using the device's built-in calibration registers or through external calibration resistors. Refer to the device's application note for detailed calibration procedures.
  • The MAX16166AWPH+T has an operating temperature range of -40°C to +125°C, making it suitable for most automotive and industrial applications. However, it's essential to ensure that the device is properly derated for high-temperature operation to maintain accuracy and reliability.
  • Yes, the MAX16166AWPH+T is designed to operate in high-vibration environments, making it suitable for automotive and industrial applications. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • The MAX16166AWPH+T has a SPI-compatible interface that can be easily interfaced with most microcontrollers or digital systems. The device's output data is formatted in a 16-bit or 32-bit format, depending on the configuration, and can be read using a standard SPI protocol.
