MAX16171ATA+T - Analog Devices

Description: Power Management Specialized - PMIC Ideal Diode Controll er With Reverse Cur

Download MAX16171ATA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

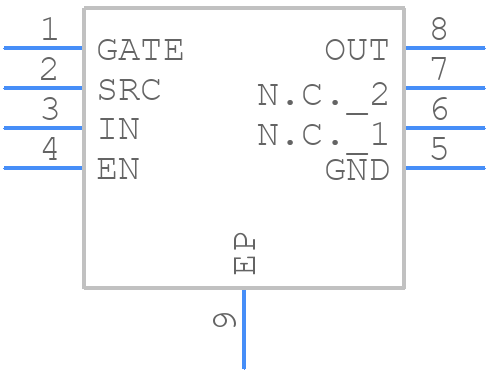

MAX16171ATA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16171ATA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T823Y+3C
click to zoom
3D Models
MAX16171ATA+T - Analog Devices - 3D model - Small Outline No-lead - T823Y+3C
click to zoom

MAX16171ATA+T Details

  • Manufacturer Part Number:

    MAX16171ATA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X3X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-10-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.25 mA

  • Supply Voltage-Max (Vsup):

    57 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +0.04V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX16171ATA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16171ATA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery or power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The MAX16171ATA+T does not require calibration for voltage monitoring. The device has an internal voltage reference and a high-accuracy ADC that provides accurate voltage measurements without the need for calibration. However, it's recommended to follow the datasheet guidelines for setting the correct voltage range and gain settings for the specific application.
  • The MAX16171ATA+T can withstand up to 36V on its input pins, but it's recommended to limit the input voltage to the specified operating range of 2.7V to 5.5V to ensure accurate and reliable operation.
  • Yes, the MAX16171ATA+T is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's recommended to follow the datasheet guidelines for thermal management and to ensure that the device is properly cooled to prevent overheating.
  • The MAX16171ATA+T has a digital output that can be directly connected to a microcontroller or other digital devices. The device uses a 3-wire SPI interface for communication, and the datasheet provides detailed information on the communication protocol and timing requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX16171ATA+T Overview

Use the download button to access the MAX16171ATA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX16, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
