MAX16545BGPF+T - Analog Devices

Description: Integrated Protection IC on 12V Bus with an Integrated MOSFET, Lossless Current Sensing, and PMBus Interface

Download MAX16545BGPF+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

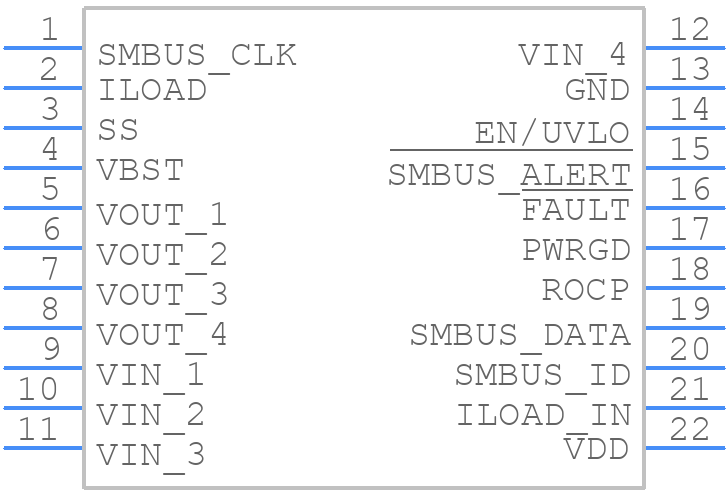

MAX16545BGPF+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16545BGPF+T - Analog Devices PCB footprint - Other - Other - P224A6F+1
click to zoom
3D Models
MAX16545BGPF+T - Analog Devices - 3D model - Other - P224A6F+1
click to zoom

MAX16545BGPF+T Details

  • Manufacturer Part Number:

    MAX16545BGPF+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    22-LFCSP-4X6.5X0.95

  • Pin Count:

    22

  • Manufacturer Package Code:

    22-LFCSP-4X6.5X0.95

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-04-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-XBCC-N22

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    22

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    BCC

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    10.8 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +1V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX16545BGPF+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16545BGPF+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, the device should be placed near the power source to minimize voltage drops.
  • To ensure proper power-up and initialization, the MAX16545BGPF+T requires a power-on reset (POR) circuit to ensure that the internal registers are reset to their default values. A 10kΩ pull-up resistor on the EN pin and a 100nF capacitor on the VCC pin are recommended. The device should be powered up slowly, with a rise time of at least 1ms, to ensure proper initialization.
  • The MAX16545BGPF+T has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
  • To troubleshoot issues with the MAX16545BGPF+T, start by checking the input voltage and current, as well as the output voltage and current. Verify that the device is properly powered up and initialized. Check for any short circuits or open circuits on the PCB. Use an oscilloscope to measure the output voltage and current waveforms. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the MAX16545BGPF+T is suitable for high-reliability and high-availability applications. The device has a high MTBF (mean time between failures) rating and is designed to meet the requirements of automotive and industrial applications. However, it is essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
