MAX16550GPN+T - Analog Devices

Description: Integrated Protection IC on 12V Bus with an Integrated MOSFET, Lossless Current Sensing, and PMBus Interface

Download MAX16550GPN+T Model

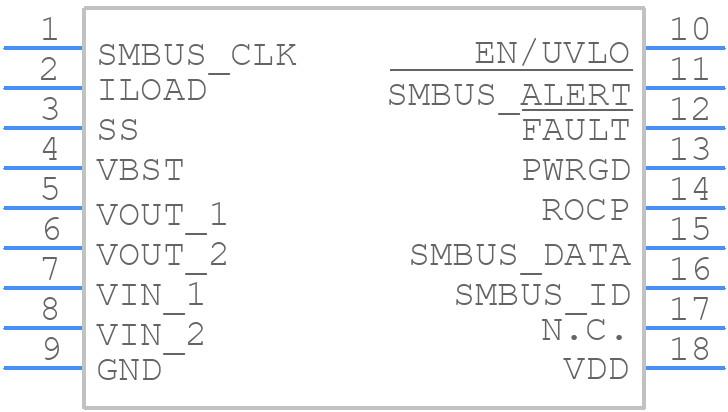

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX16550GPN+T - Analog Devices PCB footprint - Other - Other - MAX16550GPN+T-6
click to zoom
3D Models
MAX16550GPN+T - Analog Devices  - 3D model - Other - MAX16550GPN+T-6
click to zoom

MAX16550GPN+T Details

  • Manufacturer Part Number:

    MAX16550GPN+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    18-LFCSP-4X4.5X0.95

  • Package Description:

    QFN-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    18-LFCSP-4X4.5X0.95

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-04-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-XQCC-N18

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC18,.16X.17,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    10.8 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1.1V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX16550GPN+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16550GPN+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, the device should be placed near the power source to minimize voltage drops.
  • To ensure proper power-up and power-down of the MAX16550GPN+T, it is recommended to follow a controlled power-up sequence, where the input voltage (VIN) is applied before the enable pin (EN) is asserted. During power-down, the enable pin should be de-asserted before the input voltage is removed. Additionally, a soft-start circuit can be used to limit the inrush current during power-up.
  • The MAX16550GPN+T has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It is recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • To troubleshoot issues with the MAX16550GPN+T, start by verifying the input voltage, output voltage, and enable pin signals using an oscilloscope. Check for any signs of oscillation, noise, or voltage deviations. Ensure that the device is properly powered and that the input and output capacitors are of the correct value and type. If the issue persists, consult the datasheet and application notes for guidance on troubleshooting and debugging.
  • Yes, the MAX16550GPN+T is suitable for high-reliability and high-availability applications. The device has a high MTBF (mean time between failures) rating and is designed to meet the requirements of automotive, industrial, and medical applications. However, it is essential to follow proper design and manufacturing practices, including component selection, PCB layout, and testing, to ensure the device meets the required reliability and availability standards.
