MAX16915AUB+ - Analog Devices

Description: Supervisory Circuits Ideal Diode, Reverse-Battery, and Overvoltage Protection Switch/Limiter Controllers with External MOSFE

Download MAX16915AUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

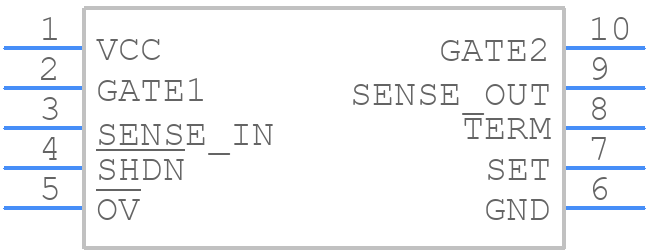

MAX16915AUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16915AUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - uMAX-10
click to zoom
3D Models
MAX16915AUB+ - Analog Devices - 3D model - Small Outline Packages - uMAX-10
click to zoom

MAX16915AUB+ Details

  • Manufacturer Part Number:

    MAX16915AUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2009-11-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    0.057 mA

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX16915AUB+ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX16915AUB+. Ensure a solid ground plane, keep the input and output traces short and separate, and use a 4-layer board with a dedicated power plane. Also, place the input capacitors close to the IC and use a common ground point for the input and output returns.
  • Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current ratings. X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitor value should be between 10uF to 22uF, depending on the input voltage and desired output ripple.
  • The MAX16915AUB+ can deliver up to 1.5A of output current. However, the maximum output current is dependent on the input voltage, output voltage, and ambient temperature. Refer to the datasheet's thermal derating curves to determine the maximum output current for your specific application.
  • The MAX16915AUB+ has a built-in overcurrent protection feature. You can set the overcurrent threshold by connecting a resistor between the OCSET pin and GND. The IC will limit the output current to the set threshold during an overcurrent event.
  • The EN (Enable) pin is used to turn the regulator on or off. Connect the EN pin to a logic high (VIN or a voltage above 1.4V) to enable the regulator, or connect it to a logic low (GND) to disable it. You can use the EN pin to implement power sequencing or to turn off the regulator during shutdown or standby modes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX16915AUB+ Overview

Use the download button to access the MAX16915AUB+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX16, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
