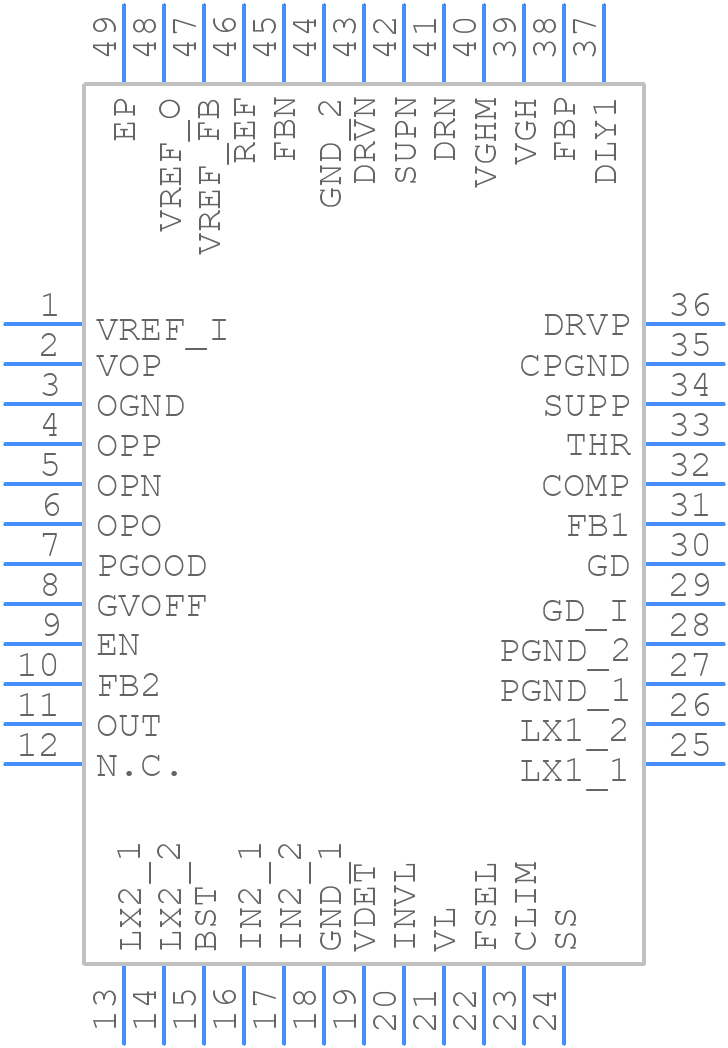

MAX17126AETM+C49 - Analog Devices

MAX17126AETM+C49 Details

• Manufacturer Part Number:

  MAX17126AETM+C49

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  48-LFCSP-7X7X0.75

• Package Description:

  TQFN-48

• Pin Count:

  48

• Manufacturer Package Code:

  48-LFCSP-7X7X0.75

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2009-08-12

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  16.5 V

• Input Voltage-Min:

  8 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  S-XQCC-N48

• JESD-609 Code:

  e3

• Length:

  7 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  48

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Voltage-Max:

  5 V

• Output Voltage-Min:

  1.5 V

• Package Body Material:

  SQUARE

• Package Code:

  HQCCN

• Package Equivalence Code:

  LCC48,.28SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK-BOOST

• Switching Frequency-Max:

  870 kHz

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7 mm
