MAX17260SETD+ - Analog Devices

Description: 5.1µA 1-Cell Fuel Gauge with ModelGauge m5 EZ and Optional High-Side Current Sensing

Download MAX17260SETD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

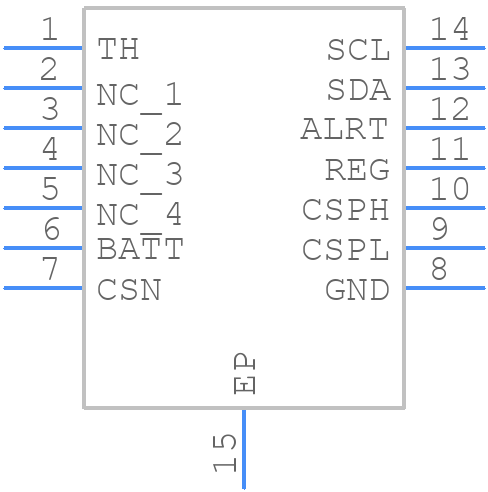

MAX17260SETD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17260SETD+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1433+2C
click to zoom
3D Models
MAX17260SETD+ - Analog Devices - 3D model - Small Outline No-lead - T1433+2C
click to zoom

MAX17260SETD+ Details

  • Manufacturer Part Number:

    MAX17260SETD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-LFCSP-3X3X0.75

  • Package Description:

    TDFN-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-06-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    S-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.12,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    4.9 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17260SETD+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17260SETD+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to place the device near the battery and to use a separate power plane for the device's input and output.
  • To optimize the performance of the MAX17260SETD+, it is recommended to follow the layout and placement guidelines, use high-quality capacitors, and ensure that the input voltage is within the recommended range. Additionally, the device's performance can be optimized by adjusting the external resistors and capacitors to achieve the desired output voltage and current.
  • The maximum input voltage that the MAX17260SETD+ can handle is 5.5V. Exceeding this voltage may damage the device or affect its performance.
  • The MAX17260SETD+ is rated for operation up to 125°C, but its performance may degrade at high temperatures. It is recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • To troubleshoot issues with the MAX17260SETD+, it is recommended to check the input voltage, output voltage, and output current to ensure they are within the recommended ranges. Additionally, check the device's thermal performance, layout, and placement to ensure they meet the recommended guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17260SETD+ Overview

Use the download button to access the MAX17260SETD+ schematic symbol, PCB footprint, and 3D model.
