MAX17262REWL+T - Analog Devices

Description: 5.2µA 1-Cell Fuel Gauge with ModelGauge m5 EZ and Internal Current Sensing

Download MAX17262REWL+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

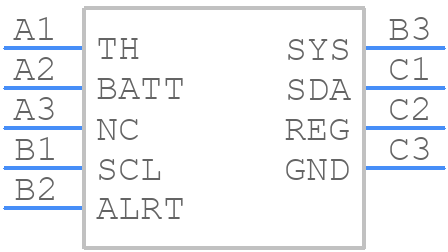

Symbol
MAX17262REWL+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17262REWL+T - Analog Devices PCB footprint - BGA - BGA - MAX17262REWL+T
click to zoom
3D Models
MAX17262REWL+T - Analog Devices - 3D model - BGA - MAX17262REWL+T
click to zoom

MAX17262REWL+T Details

  • Manufacturer Part Number:

    MAX17262REWL+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    9-WLCSP-N/A

  • Package Description:

    VFBGA, BGA9,3X3,16

  • Pin Count:

    9

  • Manufacturer Package Code:

    9-WLCSP-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-08-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PBGA-B9

  • Length:

    1.468 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max (Isup):

    0.03 mA

  • Supply Voltage-Max (Vsup):

    4.9 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.448 mm

MAX17262REWL+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17262REWL+T involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value of 10uF to 22uF, and the output capacitor should be a low-ESR ceramic capacitor with a value of 22uF to 47uF. The capacitor selection should be based on the specific application requirements and the desired output voltage ripple.
  • The MAX17262REWL+T has an operating ambient temperature range of -40°C to +125°C, but the maximum junction temperature is 150°C. The device should be operated within the recommended temperature range to ensure reliable operation and to prevent overheating.
  • The MAX17262REWL+T has a built-in overcurrent protection feature that can be enabled by connecting the OCSET pin to a resistor divider network. The resistor values should be selected based on the desired overcurrent threshold and the input voltage range.
  • The recommended input voltage range for the MAX17262REWL+T is 2.7V to 5.5V, but the device can operate with input voltages as low as 2.3V. However, the output voltage regulation and efficiency may be affected at lower input voltages.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17262REWL+T Overview

Use the download button to access the MAX17262REWL+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX17, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
