MAX17263LETD+T - Analog Devices

Description: Single/Multi-Cell Fuel Gauge with ModelGauge m5 EZ and Integrated LED Control

Download MAX17263LETD+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

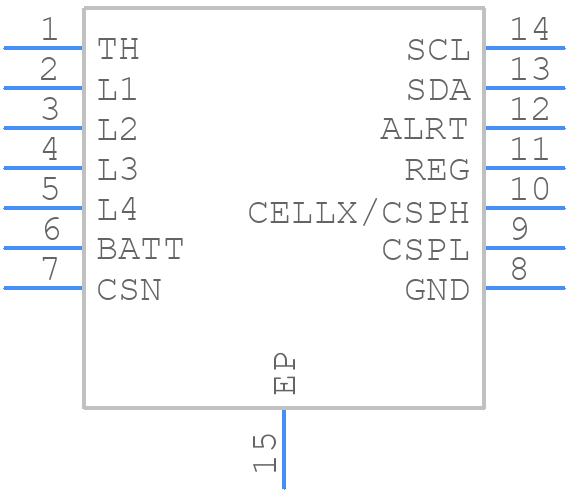

Symbol
MAX17263LETD+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17263LETD+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1433+2C
click to zoom
3D Models
MAX17263LETD+T - Analog Devices - 3D model - Small Outline No-lead - T1433+2C
click to zoom

MAX17263LETD+T Details

  • Manufacturer Part Number:

    MAX17263LETD+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-LFCSP-3X3X0.75

  • Package Description:

    TDFN-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-08-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    S-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.12,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    4.9 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17263LETD+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17263LETD+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to place the device away from high-current carrying traces and to use a low-ESR capacitor for the output capacitor.
  • The selection of input and output capacitors for the MAX17263LETD+T depends on the specific application requirements. In general, a low-ESR ceramic capacitor with a value between 4.7uF to 10uF is recommended for the input capacitor, and a low-ESR ceramic or tantalum capacitor with a value between 10uF to 22uF is recommended for the output capacitor. The capacitor selection should also consider the voltage rating, ripple current rating, and temperature rating.
  • The MAX17263LETD+T can handle an input voltage up to 5.5V, but it is recommended to operate the device within the specified input voltage range of 2.7V to 5.5V to ensure optimal performance and reliability.
  • The MAX17263LETD+T has a built-in overvoltage protection feature that limits the output voltage to 5.5V. However, if additional overvoltage protection is required, an external voltage clamp or a zener diode can be used to limit the input voltage to a safe level. It is also recommended to add a fuse or a current limiter to prevent damage to the device in case of an overvoltage event.
  • The typical startup time for the MAX17263LETD+T is around 1ms, but it can vary depending on the input voltage, output load, and other factors. The startup time can be affected by the soft-start feature, which can be adjusted using the SS pin.
