MAX17313X+ - Analog Devices

Description: 1-Cell ModelGauge m5 EZ Fuel Gauge with Protector, Internal Self-Discharge Detection and SHA-256 Authentication

Download MAX17313X+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

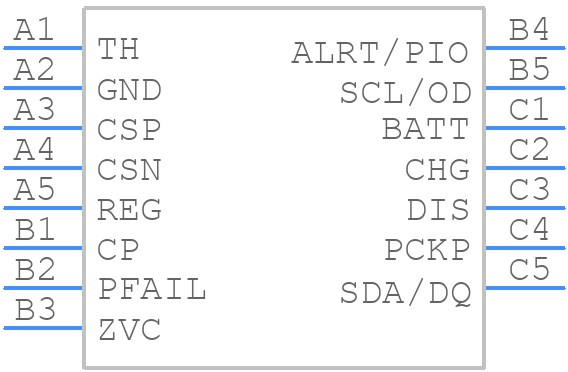

MAX17313X+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17313X+ - Analog Devices PCB footprint - BGA - BGA - 15 WLP
click to zoom
3D Models
MAX17313X+ - Analog Devices - 3D model - BGA - 15 WLP
click to zoom

MAX17313X+ Details

  • Manufacturer Part Number:

    MAX17313X+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    15-WLCSP-N/A

  • Package Description:

    WLP-15

  • Pin Count:

    15

  • Manufacturer Package Code:

    15-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-06-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    Cascade Function:N;CTL:Y;Integrated MOSFET:N;PS:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PBGA-B15

  • Length:

    2.448 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA15,3X5,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max (Isup):

    0.05 mA

  • Supply Voltage-Max (Vsup):

    4.9 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +2.8V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.678 mm

MAX17313X+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17313X+ involves keeping the device close to the battery, using a solid ground plane, and minimizing the length of the high-current paths. It's also important to keep the device away from high-frequency noise sources and to use a low-ESR capacitor for the input filter.
  • To optimize the performance of the MAX17313X+, you should consider factors such as the input voltage range, output voltage, and maximum current requirements. You should also ensure that the device is properly configured and that the external components are selected correctly. Additionally, you can use simulation tools and evaluation boards to test and optimize the device's performance.
  • The MAX17313X+ has a thermal shutdown feature that protects the device from overheating. However, it's still important to consider thermal management in your design. This includes providing adequate airflow, using a heat sink if necessary, and ensuring that the device is not operated at excessive temperatures. The device's thermal characteristics can be found in the datasheet.
  • To troubleshoot issues with the MAX17313X+, start by checking the device's configuration and ensuring that it is properly connected. Check the input voltage, output voltage, and current levels to ensure they are within the specified ranges. Use a oscilloscope or logic analyzer to check the device's signals and identify any anomalies. You can also refer to the datasheet and application notes for troubleshooting guidance.
  • The MAX17313X+ is designed to meet EMI and EMC requirements, but it's still important to consider these factors in your design. This includes using a shielded layout, minimizing loop areas, and using EMI filters and shielding components as necessary. You should also ensure that the device is properly configured and that the external components are selected correctly to minimize EMI and EMC issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17313X+ Overview

Use the download button to access the MAX17313X+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX17, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
