MAX17320X20+T - Analog Devices

Description: 2S-4S ModelGauge m5 EZ Fuel Gauge with Protector, Internal Self-Discharge Detection, and SHA-256 Authentication

Download MAX17320X20+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

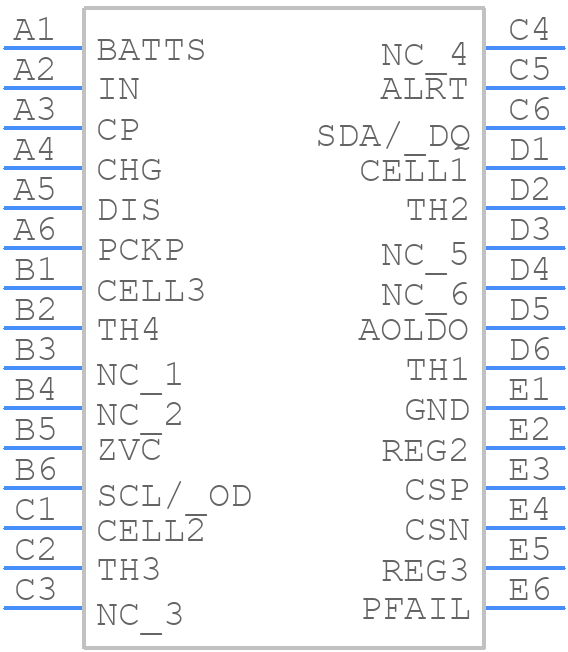

Symbol
MAX17320X20+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17320X20+T - Analog Devices PCB footprint - BGA - BGA - W302O2+1-1
click to zoom
3D Models
MAX17320X20+T - Analog Devices - 3D model - BGA - W302O2+1-1
click to zoom

MAX17320X20+T Details

  • Manufacturer Part Number:

    MAX17320X20+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    30-WLCSP-N/A

  • Pin Count:

    30

  • Manufacturer Package Code:

    30-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-05-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    BATTERY GAUGE

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX17320X20+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17320X20+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
  • The selection of input and output capacitors for the MAX17320X20+T depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired output voltage ripple and the input voltage range. A good starting point is to use 10uF capacitors for both input and output.
  • The MAX17320X20+T has an operating temperature range of -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. In general, the device can operate up to 85°C ambient temperature with proper thermal design and cooling.
  • The MAX17320X20+T has a built-in overvoltage protection (OVP) feature that can be enabled by connecting the OVP pin to a voltage source. The OVP threshold can be set by selecting the appropriate resistor value between the OVP pin and the input voltage. Additionally, external OVP circuits can be implemented using zener diodes or voltage supervisors to provide additional protection.
  • The recommended input voltage range for the MAX17320X20+T is 2.5V to 5.5V, but the device can operate with input voltages as low as 2.2V and as high as 6V. However, the output voltage regulation and efficiency may be affected at these extreme input voltage ranges.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17320X20+T Overview

Use the download button to access the MAX17320X20+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX17, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
