MAX17335X22+T - Analog Devices

Description: AccuCharge + ModelGauge m5 EZ 1-Cell Charger, Fuel Gauge, and Protector

Download MAX17335X22+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

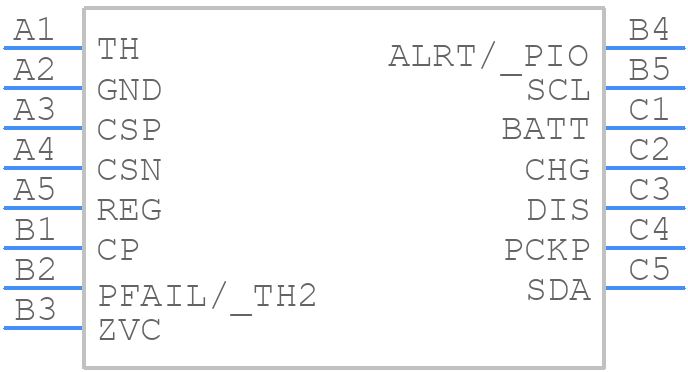

MAX17335X22+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17335X22+T - Analog Devices PCB footprint - BGA - BGA - W151J2+1
click to zoom
3D Models
MAX17335X22+T - Analog Devices - 3D model - BGA - W151J2+1
click to zoom

MAX17335X22+T Details

  • Manufacturer Part Number:

    MAX17335X22+T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLP-15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • Additional Feature:

    Cascade Function:N;CTL:Y;Integrated MOSFET:N;PS:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-XBGA-B15

  • Length:

    2.448 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA15,3X5,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max (Isup):

    0.058 mA

  • Supply Voltage-Max (Vsup):

    4.9 V

  • Supply Voltage-Min (Vsup):

    2.16 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.908 mm

MAX17335X22+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17335X22+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 10uF to 22uF, and the output capacitor should be a low-ESR ceramic capacitor with a value between 22uF to 47uF. The capacitor selection also depends on the specific application requirements, such as ripple current, voltage rating, and physical size.
  • The MAX17335X22+T has an operating temperature range of -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to derate the device's power dissipation at higher ambient temperatures to ensure reliable operation.
  • The MAX17335X22+T has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage source. The OVP threshold can be set by selecting the appropriate resistor values for the OVP pin. Additionally, external OVP circuits can be implemented using zener diodes, resistors, and transistors to provide additional protection.
  • The recommended startup sequence for the MAX17335X22+T involves applying the input voltage, followed by the enable signal, and then the output voltage. This sequence ensures that the device starts up correctly and avoids any potential latch-up or damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17335X22+T Overview

Use the download button to access the MAX17335X22+T schematic symbol, PCB footprint, and 3D model.
