MAX17608ATC+ - Analog Devices

Description: 4.5V to 60V, 1A Current Limiter with OV, UV, and Reverse Protection

Download MAX17608ATC+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

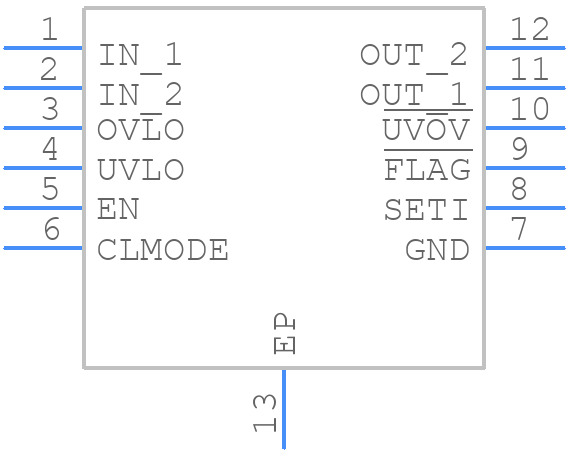

Symbol
