MAX17608ATC+T - Analog Devices

Description: 4.5V to 60V, 1A Current Limiter with OV, UV, and Reverse Protection

Download MAX17608ATC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

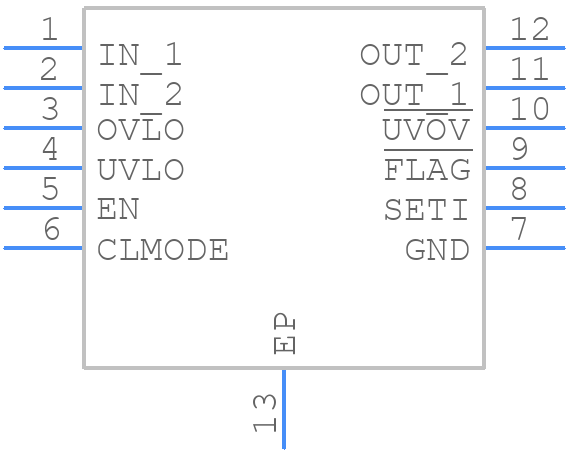

Symbol
MAX17608ATC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17608ATC+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1233+1C
click to zoom
3D Models
MAX17608ATC+T - Analog Devices - 3D model - Small Outline No-lead - TD1233+1C
click to zoom

MAX17608ATC+T Details

  • Manufacturer Part Number:

    MAX17608ATC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-03-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY PROTECTOR

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17608ATC+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17608ATC+T can be found in the MAX17608 Evaluation Kit User Guide (UG1343) and the MAX17608 Layout Guidelines application note (AN8833). These resources provide detailed guidance on PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
  • The MAX17608ATC+T is a highly configurable device that can be programmed to support various battery chemistries. The device's configuration is done through the I2C interface, and the specific configuration settings for a given battery chemistry can be found in the MAX17608 datasheet and the MAX17608 Programming Guide (UG1344). Additionally, Analog Devices provides a Battery Configuration Tool that can be used to generate the necessary configuration code for a specific battery chemistry.
  • The MAX17608ATC+T's voltage and current measurements are highly accurate, with a typical voltage measurement accuracy of ±0.5% and a typical current measurement accuracy of ±1.5%. The device's accuracy is specified over the entire operating temperature range and is ensured through a combination of high-precision analog-to-digital converters and sophisticated calibration algorithms.
  • The MAX17608ATC+T has built-in fault detection and error handling capabilities to ensure safe and reliable operation. The device can detect and respond to various fault conditions, including overcharge, over-discharge, over-current, and short-circuit. In the event of a fault, the device can take corrective action, such as shutting down the charging circuit or alerting the system controller. The device's fault handling capabilities can be configured through the I2C interface.
  • Yes, the MAX17608ATC+T is designed to meet the requirements of various automotive and industrial standards, including AEC-Q100, IEC 61508, and ISO 26262. The device is also compliant with various safety standards, such as UL 2271 and IEC 62133. Additionally, the device is manufactured using a robust and reliable process that ensures high quality and reliability over the entire operating temperature range.
