MAX17613CATP+ - Analog Devices

Description: Current & Power Monitors & Regulators 4.5V to 60V, 3A Current-Limiter with OV, UV and Reverse Protection

Download MAX17613CATP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

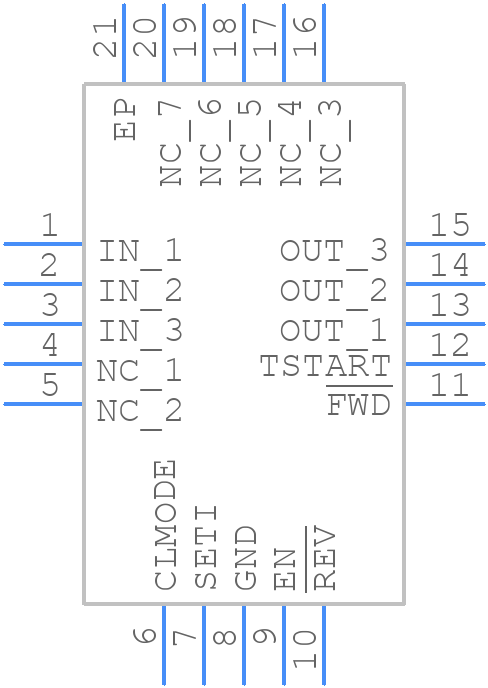

MAX17613CATP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17613CATP+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20 lead
click to zoom
3D Models
MAX17613CATP+ - Analog Devices - 3D model - Quad Flat No-Lead - 20 lead
click to zoom

MAX17613CATP+ Details

  • Manufacturer Part Number:

    MAX17613CATP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-4X4X0.75

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-06-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    UNDER/OVERVOLTAGE SUPERVISOR

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX17613CATP+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17613CATP+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device near the power source and to use a low-ESR capacitor for the input capacitor.
  • To optimize the performance of the MAX17613CATP+, ensure that the input voltage is within the recommended range, use a suitable output capacitor, and minimize the output voltage ripple. Additionally, optimize the PCB layout, use a low-ESR input capacitor, and ensure that the device is operated within its recommended operating temperature range.
  • The maximum output current that the MAX17613CATP+ can deliver is 3A. However, the output current should be derated based on the ambient temperature and the input voltage to ensure reliable operation.
  • To troubleshoot issues with the MAX17613CATP+, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the input and output capacitors are suitable. Check for any signs of overheating, and ensure that the device is operated within its recommended operating conditions.
  • The MAX17613CATP+ is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's recommended to derate the output current and to ensure that the device is properly cooled to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17613CATP+ Overview

Use the download button to access the MAX17613CATP+ schematic symbol, PCB footprint, and 3D model.
