MAX17614ATP+ - Analog Devices

Description: 4.5V to 60V, 3A, Ideal Diode/Power Source Selector with Current Limit, UV, OV Protection

Download MAX17614ATP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

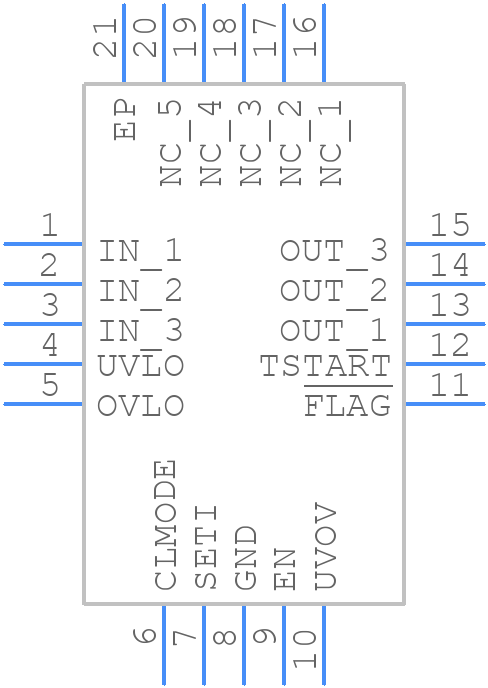

MAX17614ATP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17614ATP+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2044 +4C
click to zoom
3D Models
MAX17614ATP+ - Analog Devices - 3D model - Quad Flat No-Lead - T2044 +4C
click to zoom

MAX17614ATP+ Details

  • Manufacturer Part Number:

    MAX17614ATP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-4X4X0.75

  • Package Description:

    TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-4X4X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2023-07-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    THERMAL SHUTDOWN:155C

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.35 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1.45V;+1.45V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX17614ATP+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17614ATP+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, the device should be placed near the power source and the output capacitors should be placed near the load.
  • The compensation network for the MAX17614ATP+ involves selecting the right values for the compensation resistors and capacitors. The datasheet provides a starting point for the compensation network, but the optimal values may vary depending on the specific application. A good approach is to use the datasheet values as a starting point and then adjust them based on the results of a stability analysis using a tool such as a Bode plot.
  • The maximum input voltage that the MAX17614ATP+ can handle is 42V. However, the device can operate with input voltages up to 60V for short durations (less than 100ms) without damage. It's recommended to use a voltage regulator or a transient voltage suppressor to protect the device from voltage spikes and surges.
  • To ensure the MAX17614ATP+ operates within its thermal limits, it's essential to provide adequate heat sinking and to follow proper thermal design practices. The device has a maximum junction temperature of 150°C, and the thermal resistance from junction to ambient is 34°C/W. A good approach is to use a thermal pad or a heat sink with a thermal resistance of less than 10°C/W to keep the junction temperature below 125°C.
  • The recommended input capacitor type for the MAX17614ATP+ is a low-ESR ceramic capacitor with a value of 10uF to 22uF. The capacitor should be rated for the maximum input voltage and should have a low equivalent series resistance (ESR) to minimize voltage ripple and ensure stable operation.
