MAX17614ATP+T - Analog Devices

Description: 4.5V to 60V, 3A, Ideal Diode/Power Source Selector with Current Limit, UV, OV Protection

Download MAX17614ATP+T Model
Schematic

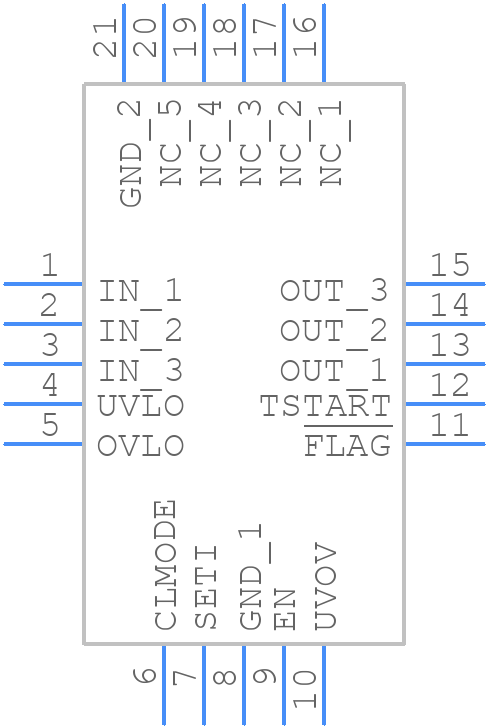

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX17614ATP+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-LFCSP-4X4X0.75_2023-2
click to zoom
3D Models
MAX17614ATP+T - Analog Devices  - 3D model - Quad Flat No-Lead - 20-LFCSP-4X4X0.75_2023-2
click to zoom

MAX17614ATP+T Details

  • Manufacturer Part Number:

    MAX17614ATP+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-4X4X0.75

  • Package Description:

    TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-4X4X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2023-07-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    THERMAL SHUTDOWN:155C

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.35 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1.45V;+1.45V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX17614ATP+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17614ATP+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device near the power source and to use a low-ESR capacitor for the input capacitor.
  • To optimize the performance of the MAX17614ATP+T, you should consider factors such as the input voltage range, output voltage requirements, and load current. You should also ensure that the device is operated within its recommended operating conditions, and that the input and output capacitors are selected based on the device's requirements. Additionally, you may need to add external components such as resistors or inductors to optimize the performance of the device in your specific application.
  • The MAX17614ATP+T has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for optimal performance and reliability. You should ensure that the device is mounted on a suitable heat sink, and that the PCB is designed to dissipate heat effectively. You should also consider the thermal resistance of the device and the PCB when designing your application.
  • To troubleshoot issues with the MAX17614ATP+T, you should first consult the datasheet and application notes to ensure that the device is being used correctly. You should then check the input and output voltages, and the device's operating conditions, to ensure that they are within the recommended ranges. You may also need to use oscilloscopes or other test equipment to diagnose issues such as oscillation or noise. Additionally, you should consider seeking support from Analog Devices Inc or a qualified engineer if you are unable to resolve the issue.
  • The MAX17614ATP+T is designed to meet EMI and EMC standards, but you should still take steps to minimize electromagnetic interference and ensure electromagnetic compatibility in your application. This may involve using shielding, filtering, and grounding techniques, as well as following best practices for PCB design and layout. You should also ensure that the device is operated within its recommended operating conditions, and that the input and output capacitors are selected based on the device's requirements.
