MAX17851AUP/V+ - Analog Devices

Description: UART Interface IC Automotive SPI to UART Bridge Monitor

Download MAX17851AUP/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

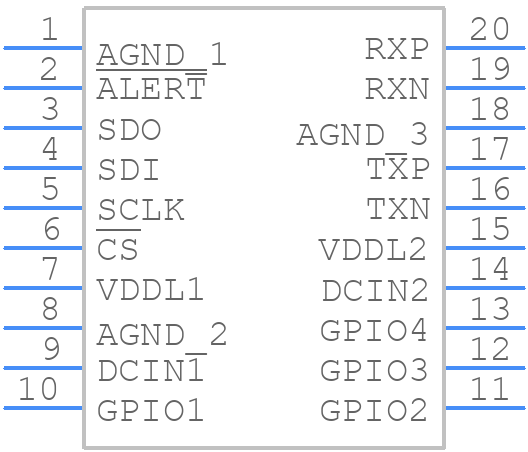

Symbol
MAX17851AUP/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17851AUP/V+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20 TSSOP
click to zoom
3D Models
MAX17851AUP/V+ - Analog Devices - 3D model - Small Outline Packages - 20 TSSOP
click to zoom

MAX17851AUP/V+ Details

  • Manufacturer Part Number:

    MAX17851AUP/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2021-09-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Boundary Scan:

    NO

  • Bus Compatibility:

    SPI, UART

  • Clock Frequency-Max:

    65.28 MHz

  • Communication Protocol:

    ASYNC, BIT, BYTE, UART

  • Data Transfer Rate-Max:

    0.5 MBps

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of I/O Lines:

    4

  • Number of Serial I/Os:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

MAX17851AUP/V+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX17851AUP/V+ is to follow a 4-layer stack-up with a solid ground plane on the bottom layer, and to keep the analog and digital signals separate to minimize noise and interference. Additionally, it is recommended to use a low-ESR capacitor for the input and output capacitors, and to place them as close as possible to the device pins.
  • To optimize the performance of the MAX17851AUP/V+, it is recommended to follow the recommended operating conditions, such as input voltage, output voltage, and operating temperature. Additionally, it is recommended to use a low-impedance output capacitor, and to minimize the output voltage ripple by using a high-quality output capacitor and a low-ESR input capacitor.
  • The maximum input voltage that the MAX17851AUP/V+ can handle is 60V. However, it is recommended to operate the device within the recommended input voltage range of 4.5V to 40V to ensure optimal performance and reliability.
  • Yes, the MAX17851AUP/V+ is rated for operation up to 125°C. However, it is recommended to derate the output current and input voltage at high temperatures to ensure reliable operation. Additionally, it is recommended to use a heat sink or thermal pad to dissipate heat and reduce the junction temperature.
  • To troubleshoot issues with the MAX17851AUP/V+, it is recommended to follow a systematic approach, starting with checking the input voltage, output voltage, and output current. Additionally, it is recommended to check for any signs of overheating, such as excessive heat or thermal shutdown. It is also recommended to consult the datasheet and application notes for troubleshooting guidelines and tips.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17851AUP/V+ Overview

Use the download button to access the MAX17851AUP/V+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX17, or try a keyword search, such as Serial IO/Communication Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
