MAX186DCPP+ - Analog Devices

Description: ADC,8 ch,12 bit,Serial,QSPI,MAX186DCPP+ MAX186DCPP+, 12 bit ADC Differential, Serial, 20-Pin PDIP

Download MAX186DCPP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

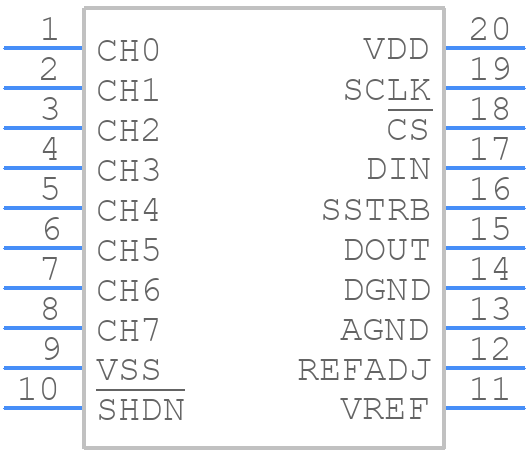

MAX186DCPP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

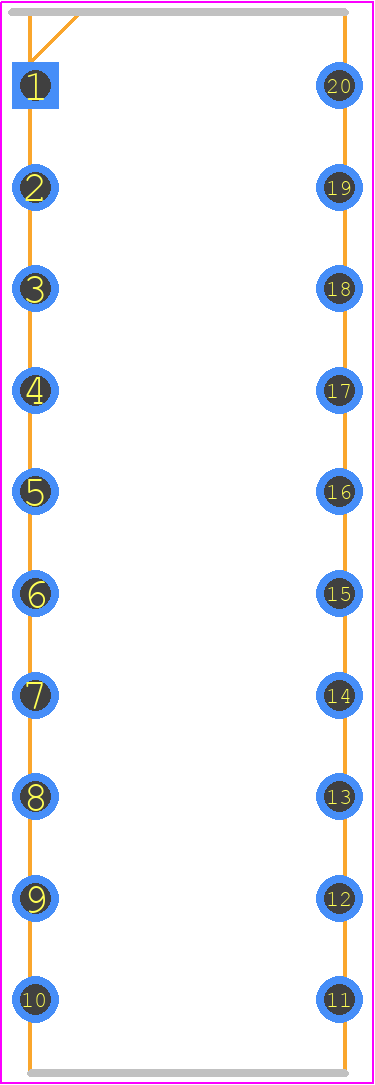

MAX186DCPP+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P20+3
click to zoom
3D Models
MAX186DCPP+ - Analog Devices - 3D model - Dual-In-Line Packages - P20+3
click to zoom

MAX186DCPP+ Details

  • Manufacturer Part Number:

    MAX186DCPP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-PDIP-300_MIL

  • Package Description:

    DIP-8

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1999-05-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    4.096 V

  • Conversion Time-Max:

    8.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.375 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.075 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    4.572 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MAX186DCPP+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX186DCPP+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, the device should be placed near the power source to minimize the length of the power traces.
  • To optimize the performance of the MAX186DCPP+ in a high-temperature environment, ensure good thermal conduction by using a heat sink or a thermal pad, and keep the device away from heat sources. Also, reduce the input voltage and output current to minimize power dissipation, and consider using a lower-power version of the device if possible.
  • The maximum allowed input voltage ripple for the MAX186DCPP+ is 10% of the input voltage, but it's recommended to keep the input voltage ripple below 5% to ensure stable operation and minimize output voltage ripple.
  • Yes, the MAX186DCPP+ can be used in a battery-powered application, but ensure that the input voltage is within the recommended range (2.7V to 5.5V) and that the device is properly bypassed with capacitors to minimize power consumption and noise.
  • To troubleshoot issues with the MAX186DCPP+, start by checking the input voltage, output voltage, and output current. Verify that the device is properly powered and that the input and output capacitors are properly connected. Check for any signs of overheating, and ensure that the device is not exposed to excessive noise or EMI. If the issue persists, consult the datasheet and application notes for further guidance.
