MAX186DEPP+ - Analog Devices

Description: Maxim MAX186DEPP+, 12 bit Serial ADC, 8-channel Differential Input, 20-Pin PDIP

Download MAX186DEPP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

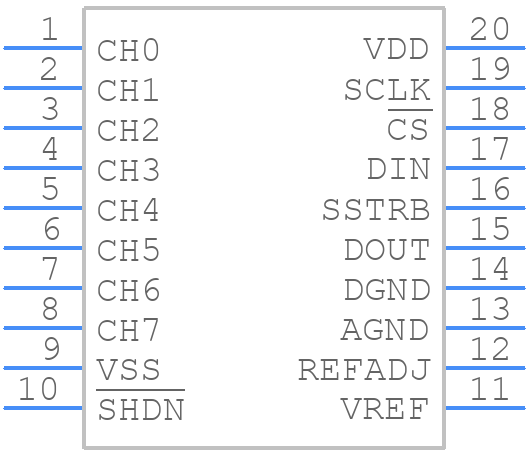

Symbol
MAX186DEPP+ - Analog Devices - PCB symbol
click to zoom

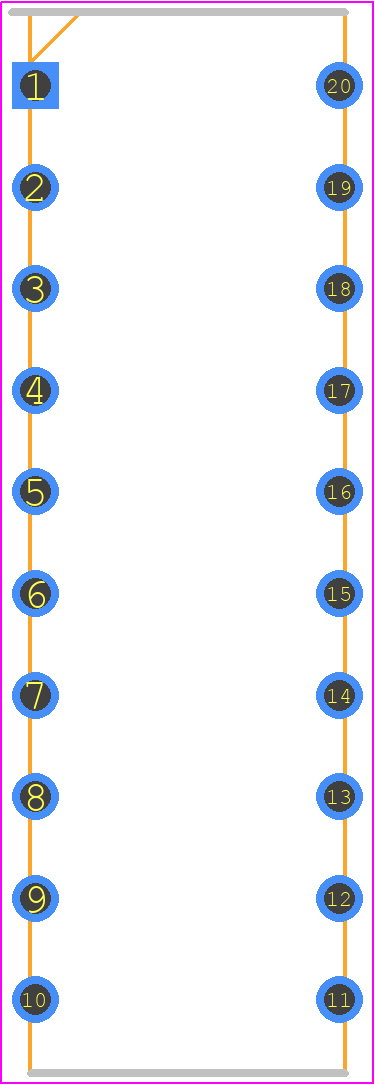

PCB Footprints
MAX186DEPP+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 20 PDIP
click to zoom
3D Models
MAX186DEPP+ - Analog Devices - 3D model - Dual-In-Line Packages - 20 PDIP
click to zoom

MAX186DEPP+ Details

  • Manufacturer Part Number:

    MAX186DEPP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-PDIP-300_MIL

  • Package Description:

    SOP-16

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1999-05-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    4.096 V

  • Conversion Time-Max:

    8.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.075 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MAX186DEPP+ Frequently Asked Questions (FAQs)

  • The MAX186DEPP+ requires careful layout and placement to ensure proper operation. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
  • To optimize the performance of the MAX186DEPP+, it is recommended to follow the application notes and design guidelines provided by Analog Devices Inc. Additionally, consider factors such as input voltage, output voltage, output current, and operating frequency to ensure the device is operating within its recommended specifications.
  • The MAX186DEPP+ has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device temperature below 125°C. This can be achieved by providing adequate heat sinking, using a thermal interface material, and ensuring good airflow around the device.
  • To troubleshoot issues with the MAX186DEPP+, start by verifying the input voltage, output voltage, and output current. Check for proper connections, correct component values, and ensure that the device is operating within its recommended specifications. Use oscilloscopes and other diagnostic tools to identify any issues with the device or surrounding circuitry.
  • The MAX186DEPP+ is designed to meet EMI and EMC requirements, but it is still important to follow proper design and layout practices to minimize electromagnetic interference. This includes using shielding, filtering, and proper grounding techniques to ensure compliance with relevant standards and regulations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX186DEPP+ Overview

Use the download button to access the MAX186DEPP+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX18, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
