MAX1873TEEE+ - Analog Devices

Description: Maxim MAX1873TEEE+, Battery Charger, 4000mA, 16-Pin QSOP

Download MAX1873TEEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

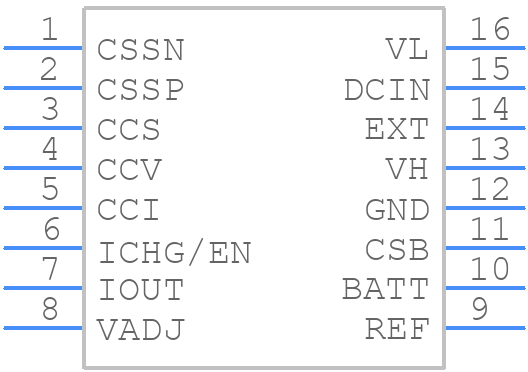

Symbol
MAX1873TEEE+ - Analog Devices - PCB symbol
click to zoom

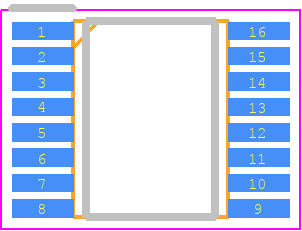

PCB Footprints
MAX1873TEEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - QSOP
click to zoom
3D Models
MAX1873TEEE+ - Analog Devices - 3D model - Small Outline Packages - QSOP
click to zoom

MAX1873TEEE+ Details

  • Manufacturer Part Number:

    MAX1873TEEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-07-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    6 V

  • Input Voltage-Nom:

    18 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.05 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    330 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX1873TEEE+ Frequently Asked Questions (FAQs)

  • The MAX1873TEEE+ requires careful layout and placement to ensure proper operation. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
  • To optimize the performance of the MAX1873TEEE+, it is recommended to follow the application guidelines provided in the datasheet, including selecting the appropriate input and output capacitors, setting the correct output voltage, and ensuring proper thermal management. Additionally, simulation tools such as SPICE models can be used to simulate the device's performance in the specific application.
  • The MAX1873TEEE+ has a maximum junction temperature of 150°C. To ensure proper thermal management, it is recommended to provide adequate heat sinking, such as using a thermal pad or heat sink, and to keep the device away from heat sources. The thermal resistance of the package should also be considered when designing the system.
  • To troubleshoot issues with the MAX1873TEEE+, it is recommended to follow a systematic approach, including checking the input and output voltages, ensuring proper connections and layout, and verifying the device's operating conditions. The datasheet and application notes provide guidance on troubleshooting common issues, and Analog Devices' support resources can also be consulted.
  • The MAX1873TEEE+ is a switching regulator and can generate electromagnetic interference (EMI). To minimize EMI, it is recommended to follow proper layout and shielding techniques, such as using a shielded inductor and keeping the device away from sensitive circuits. Additionally, the device's switching frequency can be adjusted to minimize EMI, and EMI filters can be used to reduce emissions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1873TEEE+ Overview

Use the download button to access the MAX1873TEEE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX18, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
