MAX187BCPA+ - Analog Devices

Description: S 12-Bit Resolution S ±½ LSB Integral Nonlinearity (MAX187A/MAX189A) S Internal Track/Hold, 75kHz Sampling Rate S Single +5V Operation S Low Power: 2µA Shutdown Current 1.5mA Operating Current S Internal 4.096V Buffered Reference (MAX187) S 3-Wire Serial Interface, Compatible with SPI, QSPI, and MICROWIRE S Small-Footprint 8-Pin PDIP

Download MAX187BCPA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

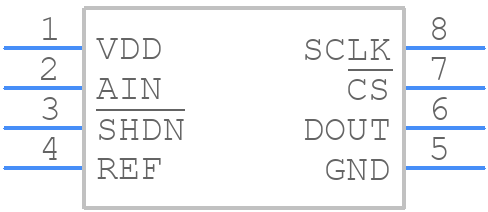

MAX187BCPA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

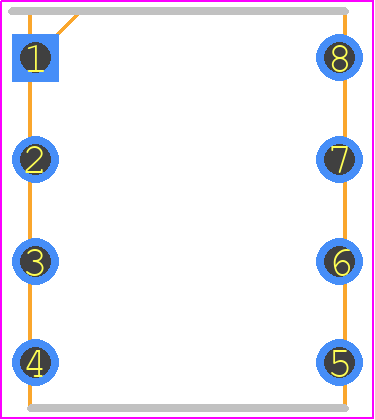

MAX187BCPA+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P8+3
click to zoom
3D Models
MAX187BCPA+ - Analog Devices - 3D model - Dual-In-Line Packages - P8+3
click to zoom

MAX187BCPA+ Details

  • Manufacturer Part Number:

    MAX187BCPA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-PDIP-300_MIL

  • Package Description:

    SOP-16

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1993-10-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    4.096 V

  • Conversion Time-Max:

    8.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.075 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MAX187BCPA+ Frequently Asked Questions (FAQs)

  • The MAX187BCPA+ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the power source, use a solid ground plane, and keep the input and output traces separate. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The output capacitor value depends on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a value of at least 10uF for every 1A of output current. However, it is recommended to consult the datasheet and application notes for more specific guidance.
  • The MAX187BCPA+ has an absolute maximum input voltage rating of 18V. However, it is recommended to operate the device within the recommended input voltage range of 7V to 15V to ensure optimal performance and reliability.
  • The MAX187BCPA+ has an operating temperature range of -40°C to +85°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to consult the datasheet and application notes for more specific guidance on using the device in high-temperature environments.
  • To ensure stability, it is recommended to follow the layout and placement guidelines, use a sufficient output capacitor value, and ensure that the input voltage is within the recommended range. Additionally, it is recommended to add a small ceramic capacitor (e.g. 10nF) between the output and ground pins to help stabilize the output voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX187BCPA+ Overview

Use the download button to access the MAX187BCPA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX18, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
