MAX192AEAP+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX192AEAP+ - ADC, OCTAL, SAR, 10BIT, 133KSPS, SSOP-20

Download MAX192AEAP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

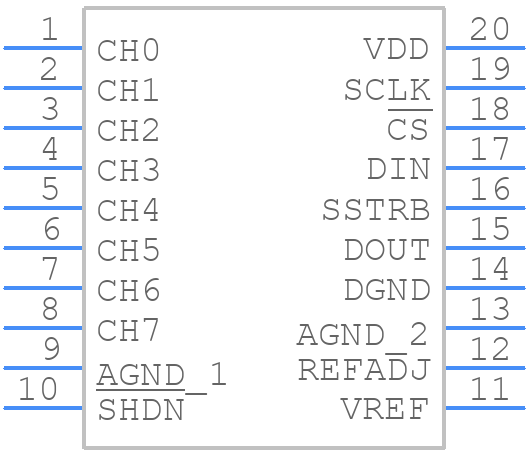

Symbol
MAX192AEAP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX192AEAP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20 SSOP
click to zoom
3D Models
MAX192AEAP+ - Analog Devices - 3D model - Small Outline Packages - 20 SSOP
click to zoom

MAX192AEAP+ Details

  • Manufacturer Part Number:

    MAX192AEAP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-SSOP-5.3_MM

  • Package Description:

    5.30 MM, 0.65 MM PITCH, ROHS COMPLIANT, SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1999-05-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.048 V

  • Analog Input Voltage-Min:

    -2.048 V

  • Conversion Time-Max:

    2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.133 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX192AEAP+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX192AEAP+ involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To optimize the performance of the MAX192AEAP+ in a high-temperature environment, it's recommended to use a heat sink, ensure good airflow, and reduce the power dissipation of the device. Additionally, the device can be derated to reduce the power dissipation and junction temperature, and the thermal shutdown feature can be used to protect the device from overheating.
  • The recommended input capacitance for the MAX192AEAP+ is 10uF to 22uF, and the recommended output capacitance is 10uF to 47uF. However, the optimal capacitance values may vary depending on the specific application and operating conditions.
  • To troubleshoot common issues with the MAX192AEAP+, such as oscillation or instability, it's recommended to check the PCB layout and ensure that it meets the recommended layout guidelines. Additionally, check the input and output voltage levels, and ensure that the device is properly decoupled. If the issue persists, try reducing the input voltage or increasing the output capacitance.
  • Yes, the MAX192AEAP+ can be used in a switching power supply application, but it's recommended to use a switching frequency above 100kHz to minimize the effects of the device's internal compensation network. Additionally, the device's output voltage should be filtered to reduce the ripple voltage and ensure that it meets the required specifications.
