MAX1946ETA+T - Analog Devices

Description: Power Switch ICs - Power Distribution Single USB Switch with Autoreset and Fault Blanking in Tiny TDFN

Download MAX1946ETA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

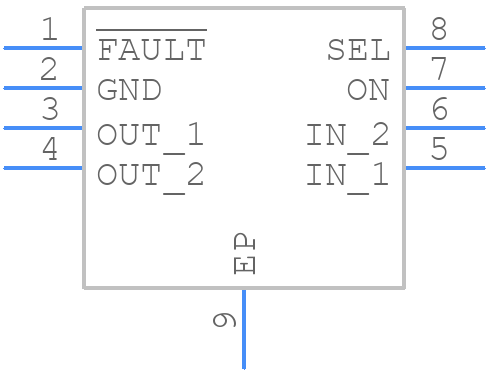

MAX1946ETA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1946ETA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T833+1a
click to zoom
3D Models
MAX1946ETA+T - Analog Devices - 3D model - Small Outline No-lead - T833+1a
click to zoom

MAX1946ETA+T Details

  • Manufacturer Part Number:

    MAX1946ETA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-3X3X0.75

  • Package Description:

    HVSON, LCC8,.12SQ

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-3X3X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-08-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    USB ANALOG SWITCH

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    LCC8,.12SQ

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX1946ETA+T Frequently Asked Questions (FAQs)

  • The MAX1946ETA+T is a high-frequency device, and proper layout and placement are crucial to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the power supply. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The selection of input and output capacitors for the MAX1946ETA+T depends on the specific application and operating conditions. In general, it is recommended to use low-ESR capacitors with a high ripple current rating. The input capacitor should be selected based on the input voltage and current requirements, while the output capacitor should be selected based on the output voltage and current requirements. The datasheet provides guidelines for selecting the correct capacitors, and it is recommended to consult with an applications engineer if unsure.
  • The MAX1946ETA+T has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It is recommended to consult the datasheet and to perform thorough testing and validation to ensure the device meets the required specifications over the entire operating temperature range.
  • Troubleshooting common issues with the MAX1946ETA+T requires a systematic approach. First, ensure that the device is properly powered and that the input and output voltages are within the recommended range. Check the layout and placement of the device to ensure that it is not prone to noise and oscillation. Use an oscilloscope to measure the input and output waveforms and to identify any signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guidelines and to identify potential causes of the issue.
  • The MAX1946ETA+T is a high-reliability device, but it is not specifically designed for safety-critical applications. However, it can be used in high-reliability applications with proper design, testing, and validation. It is recommended to consult the datasheet and to perform thorough testing and validation to ensure the device meets the required specifications and reliability requirements. Additionally, it is recommended to consult with an applications engineer and to follow industry standards and guidelines for high-reliability and safety-critical applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1946ETA+T Overview

Use the download button to access the MAX1946ETA+T schematic symbol, PCB footprint, and 3D model.
