MAX20043FGEEB/V+ - Analog Devices

Description: Automotive Hi-Speed USB 2.0 Protectors

Download MAX20043FGEEB/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

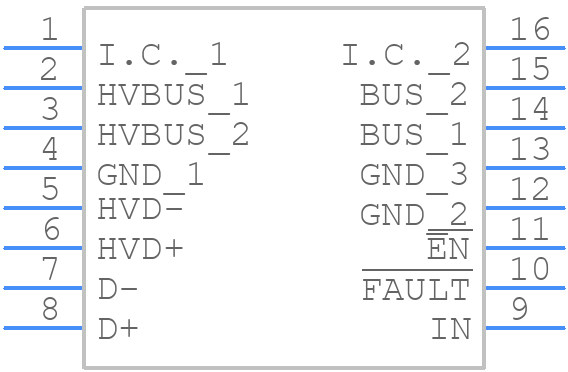

MAX20043FGEEB/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20043FGEEB/V+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - E16+12C
click to zoom
3D Models
MAX20043FGEEB/V+ - Analog Devices - 3D model - Small Outline Packages - E16+12C
click to zoom

MAX20043FGEEB/V+ Details

  • Manufacturer Part Number:

    MAX20043FGEEB/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-03-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    USB supply voltage is 4.75 to 5.5v and nominal 5v

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.01 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +5.67V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.89 mm

MAX20043FGEEB/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20043FGEEB/V+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of input and output capacitors for the MAX20043FGEEB/V+ depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired output voltage ripple and transient response. A minimum capacitance of 10uF is recommended for the input capacitor, and 22uF or higher for the output capacitor.
  • The MAX20043FGEEB/V+ has an operating temperature range of -40°C to +125°C. However, the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's essential to ensure that the device does not exceed its maximum junction temperature (Tj) of 150°C.
  • To ensure the MAX20043FGEEB/V+ is stable and does not oscillate, it's essential to follow the recommended layout guidelines, use the correct input and output capacitors, and ensure that the device is properly decoupled. Additionally, the input voltage should be well-regulated, and the output should be properly loaded. It's also recommended to add a small ceramic capacitor (e.g., 10nF) between the VIN pin and the GND pin to improve stability.
  • The MAX20043FGEEB/V+ has a maximum output current capability of 3A. However, the actual output current capability depends on the input voltage, output voltage, and ambient temperature. It's essential to ensure that the device does not exceed its maximum current rating to prevent overheating and damage.
