MAX20049ATEH/VY+T - Analog Devices

Description: Flexible, Compact Quad Power Supply with2.2MHz, 500mA Buck Converters andDual LDOs for Automotive Camera Modules

Download MAX20049ATEH/VY+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

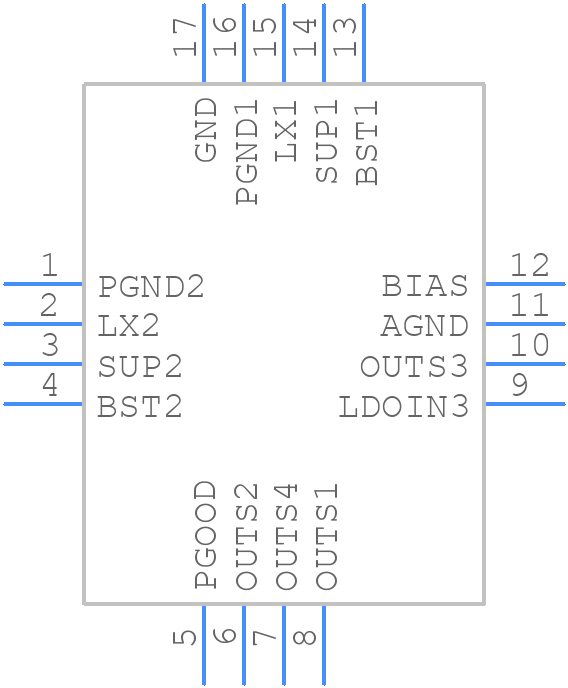

MAX20049ATEH/VY+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20049ATEH/VY+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1633Y+5C
click to zoom
3D Models
MAX20049ATEH/VY+T - Analog Devices - 3D model - Quad Flat No-Lead - T1633Y+5C
click to zoom

MAX20049ATEH/VY+T Details

  • Manufacturer Part Number:

    MAX20049ATEH/VY+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP_SS-3X3X0.75

  • Package Description:

    TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP_SS-3X3X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-02-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    17 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.7V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX20049ATEH/VY+T Frequently Asked Questions (FAQs)

  • The datasheet provides a recommended PCB layout, but it's essential to follow Analog Devices' application note AN-2153, which provides detailed guidelines for PCB layout, component placement, and thermal management.
  • The input capacitor selection depends on the input voltage, frequency, and ripple requirements. Analog Devices provides a capacitor selection guide in their application note AN-1149. Additionally, the MAX20049ATEH/VY+T specific capacitor selection guide can be found in the datasheet.
  • The MAX20049ATEH/VY+T has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consult the datasheet and thermal management guidelines to ensure optimal performance.
  • Yes, the MAX20049ATEH/VY+T is AEC-Q100 qualified and meets the requirements for high-reliability and automotive applications. However, it's crucial to follow the recommended PCB layout, component selection, and testing procedures to ensure compliance with the specific industry standards.
  • Analog Devices provides a troubleshooting guide in their application note AN-2153, which provides step-by-step procedures for identifying and resolving common issues. Additionally, the datasheet provides a list of common errors and their solutions.
