MAX20086ATPA/VY+ - Analog Devices

Description: Current & Power Monitors & Regulators Quad Channel Camera Protector, 20 SWTQFN-EP

Download MAX20086ATPA/VY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

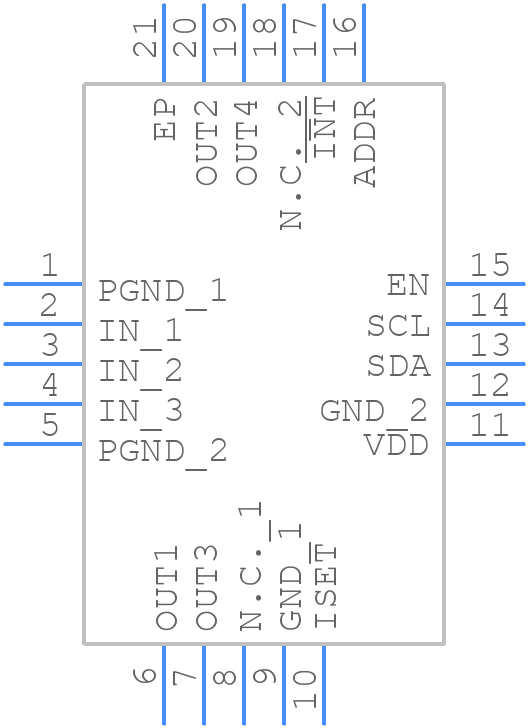

MAX20086ATPA/VY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20086ATPA/VY+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2044Y+4C
click to zoom
3D Models
MAX20086ATPA/VY+ - Analog Devices - 3D model - Quad Flat No-Lead - T2044Y+4C
click to zoom

MAX20086ATPA/VY+ Details

  • Manufacturer Part Number:

    MAX20086ATPA/VY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP_SS-4X4X0.75

  • Package Description:

    SWTQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP_SS-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-04-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    Adjustable Current Limit

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX20086ATPA/VY+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20086ATPA/VY+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of input and output capacitors for the MAX20086ATPA/VY+ depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired output voltage ripple and transient response. A minimum capacitance of 10uF is recommended for the input capacitor, and 22uF or higher for the output capacitor.
  • The MAX20086ATPA/VY+ has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to ensure that the device is operated within the recommended temperature range to ensure optimal performance and reliability.
  • The MAX20086ATPA/VY+ has a specific power-up and power-down sequence that must be followed to ensure proper operation. The device should be powered up by applying the input voltage (VIN) before the enable signal (EN). During power-down, the enable signal should be turned off before removing the input voltage. Additionally, the device should be powered up and powered down slowly to prevent voltage spikes and ensure proper operation.
  • The recommended input voltage range for the MAX20086ATPA/VY+ is 4.5V to 5.5V. Operating the device outside of this range may affect its performance and reliability. It's essential to ensure that the input voltage is within the recommended range to ensure optimal performance and reliability.
