MAX20095ATIA/VY+ - Analog Devices

Description: Backup Battery Charger and Boost Controller

Download MAX20095ATIA/VY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

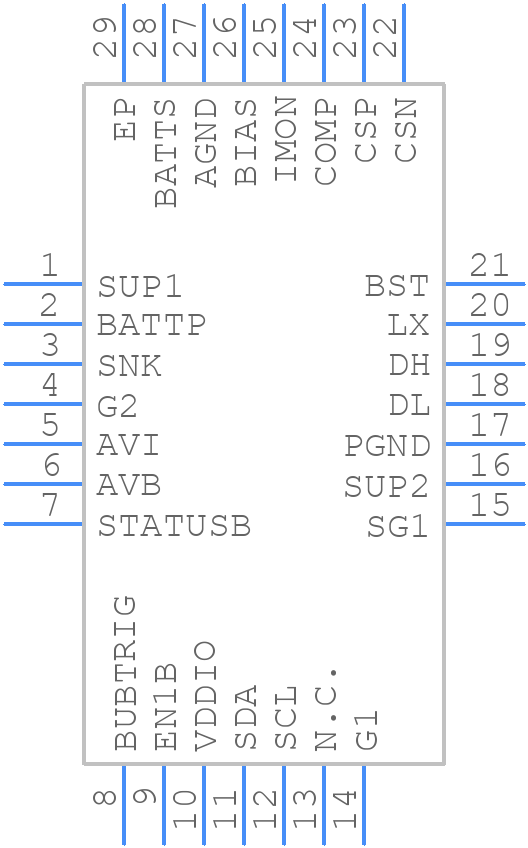

MAX20095ATIA/VY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20095ATIA/VY+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2855Y+5C
click to zoom
3D Models
MAX20095ATIA/VY+ - Analog Devices - 3D model - Quad Flat No-Lead - T2855Y+5C
click to zoom

MAX20095ATIA/VY+ Details

  • Manufacturer Part Number:

    MAX20095ATIA/VY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-LFCSP_SS-5X5X0.75

  • Package Description:

    TQFN-EP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-LFCSP_SS-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-02-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.055 mA

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +0.2V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX20095ATIA/VY+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX20095ATIA/VY+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a common-mode choke and a shielded cable for the USB interface to minimize EMI.
  • To optimize the performance of the MAX20095ATIA/VY+ in a noisy environment, it's recommended to use a common-mode filter, such as a ferrite bead or a common-mode choke, to filter out high-frequency noise. Additionally, using a shielded cable and a metal enclosure can help to reduce electromagnetic interference (EMI).
  • The maximum cable length supported by the MAX20095ATIA/VY+ is dependent on the specific application and the type of cable used. However, as a general guideline, the MAX20095ATIA/VY+ can support cable lengths of up to 3 meters (10 feet) for USB 2.0 and up to 1 meter (3.3 feet) for USB 3.0.
  • To configure the MAX20095ATIA/VY+ for low-power operation, it's recommended to use the device's built-in power-saving features, such as the low-power mode and the suspend mode. Additionally, reducing the clock frequency and using a lower voltage supply can also help to reduce power consumption.
  • The recommended voltage supply for the MAX20095ATIA/VY+ is 3.3V, with a tolerance of ±10%. However, the device can operate from a supply voltage range of 3.0V to 3.6V.
