MAX203ECPP+G36 - Analog Devices

Description: RS-232 Interface IC +/-15kV ESD-Protected, +5V RS-232 Transceivers

Download MAX203ECPP+G36 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

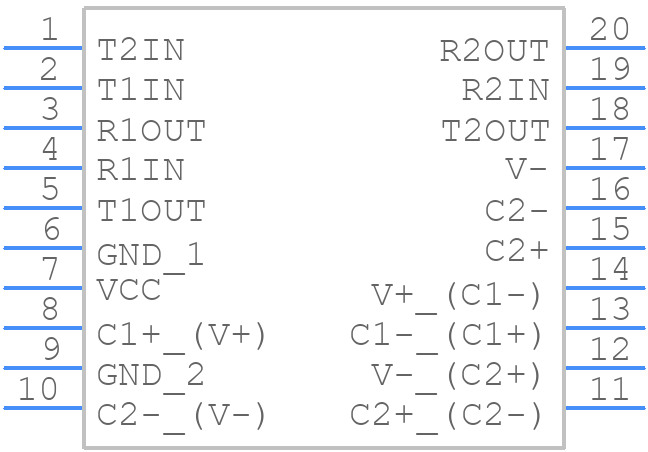

Symbol
MAX203ECPP+G36 - Analog Devices - PCB symbol
click to zoom

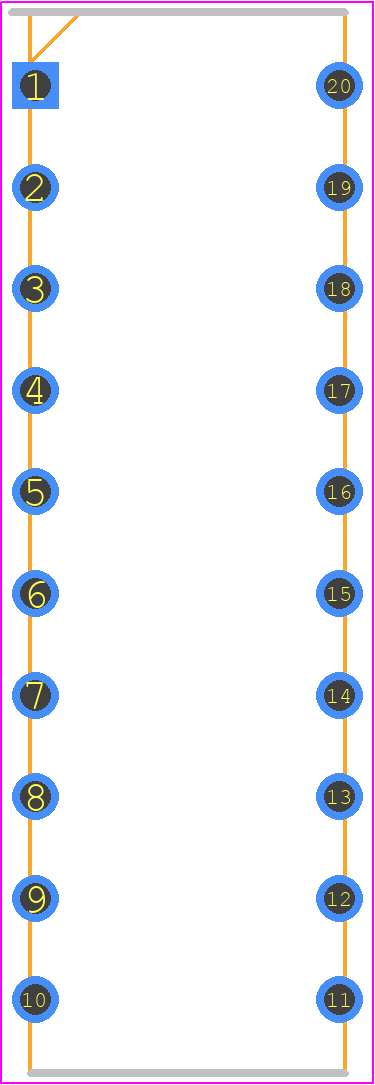

PCB Footprints
MAX203ECPP+G36 - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 20 PDIP
click to zoom
3D Models
MAX203ECPP+G36 - Analog Devices - 3D model - Dual-In-Line Packages - 20 PDIP
click to zoom

MAX203ECPP+G36 Details

  • Manufacturer Part Number:

    MAX203ECPP+G36

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-PDIP-300_MIL

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, PLASTIC, MS-001AE, DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1995-09-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    INTERNAL CHARGE PUMP

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; TIA-232-E; V.28

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    26.16 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    225

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    10000 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    4.572 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    7.62 mm

MAX203ECPP+G36 Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX203ECPP+G36 involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input capacitor should be chosen based on the input voltage range, output voltage, and output current requirements. A general rule of thumb is to use a capacitor with a value between 1uF to 10uF, with a voltage rating that is at least 1.5 times the maximum input voltage. X5R or X7R ceramic capacitors are recommended due to their low ESR and high reliability.
  • The MAX203ECPP+G36 can operate in ambient temperatures ranging from -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to derate the device's performance and consider thermal management techniques such as heat sinks or thermal interfaces to ensure reliable operation.
  • Yes, the MAX203ECPP+G36 is a high-reliability device that is suitable for use in aerospace and other high-reliability applications. The device is built with high-quality materials and undergoes rigorous testing and screening to ensure its reliability and performance. However, it's recommended to consult with Analog Devices Inc. for specific requirements and to obtain the necessary certifications and documentation.
  • To troubleshoot issues with the MAX203ECPP+G36, start by checking the input voltage, output voltage, and output current to ensure they are within the specified ranges. Check the PCB layout and component placement to ensure they meet the recommended guidelines. Use an oscilloscope to check for noise and oscillations on the input and output lines. If the issue persists, consult the datasheet and application notes, or contact Analog Devices Inc. for technical support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX203ECPP+G36 Overview

Use the download button to access the MAX203ECPP+G36 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX20, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
