MAX20430ATIBB/VY+T - Analog Devices

Description: Four-Output Mini PMIC for Safety Applications

Download MAX20430ATIBB/VY+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

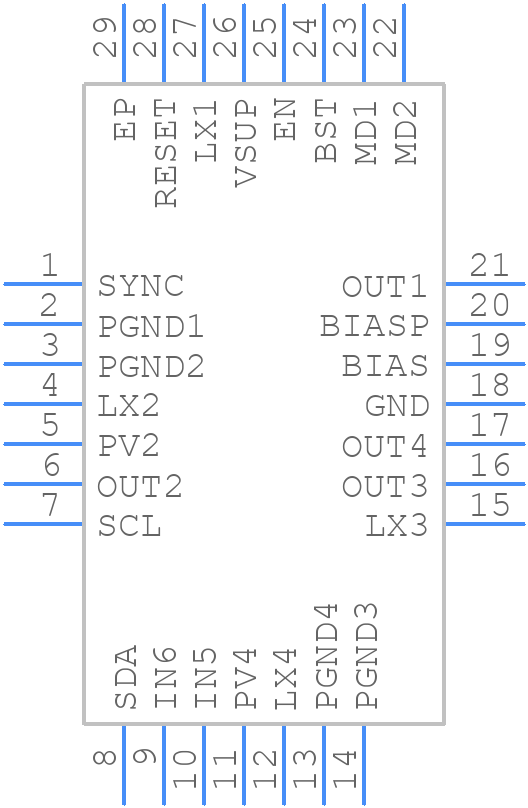

MAX20430ATIBB/VY+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20430ATIBB/VY+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2855Y+12C
click to zoom
3D Models
MAX20430ATIBB/VY+T - Analog Devices - 3D model - Quad Flat No-Lead - T2855Y+12C
click to zoom

MAX20430ATIBB/VY+T Details

  • Manufacturer Part Number:

    MAX20430ATIBB/VY+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-LFCSP_SS-5X5X0.75

  • Package Description:

    TQFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-LFCSP_SS-5X5X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-05-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.05 mA

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    3.5 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.83V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX20430ATIBB/VY+T Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX20430ATIBB/VY+T. Ensure a solid ground plane, keep the input and output traces short and separate, and use a common-mode choke to reduce EMI. Refer to the application note AN-2153 for more details.
  • Choose input capacitors with low ESR and high ripple current rating. For output capacitors, select ones with low ESR, high capacitance, and a voltage rating above the maximum output voltage. Refer to the datasheet's capacitor selection guide and application notes for more information.
  • The MAX20430ATIBB/VY+T has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures. Ensure proper thermal management and consider derating the device for high-temperature applications.
  • The MAX20430ATIBB/VY+T has built-in OCP and SCP features. Set the OCP threshold using the OCSET pin, and the device will limit the output current to prevent damage. SCP is enabled by default and will shut down the device in case of a short circuit.
  • The recommended input voltage range for the MAX20430ATIBB/VY+T is 4.5V to 14V. Operating the device outside this range may affect its performance, efficiency, and reliability.
