MAX20766EPE+ - Analog Devices

Description: Power Management Specialised - PMIC SMART SLAVE IC WITH INTEGRATED CURRENT AND TEMPERATURE SENSORS

Download MAX20766EPE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

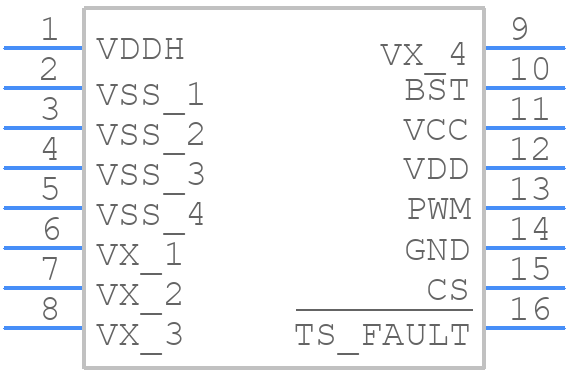

MAX20766EPE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20766EPE+ - Analog Devices PCB footprint - Other - Other - MAX20766EPE+-3
click to zoom
3D Models
MAX20766EPE+ - Analog Devices - 3D model - Other - MAX20766EPE+-3
click to zoom

MAX20766EPE+ Details

  • Manufacturer Part Number:

    MAX20766EPE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3.75X6X0.95

  • Package Description:

    FCQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3.75X6X0.95

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-08-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.02 mA

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    6.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +4.09V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.75 mm

MAX20766EPE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20766EPE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the performance of the MAX20766EPE+ in a high-temperature environment, ensure that the device is properly heatsinked, and the PCB is designed to minimize thermal resistance. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heatsink.
  • The recommended input capacitance for the MAX20766EPE+ is 10nF to 100nF. This range provides a good balance between noise filtering and stability. However, the optimal input capacitance may vary depending on the specific application and noise environment.
  • To troubleshoot issues with the MAX20766EPE+, start by verifying the power supply voltage and ensuring that it is within the recommended range. Check the input and output signals using an oscilloscope to identify any anomalies. Also, review the PCB layout and ensure that it meets the recommended guidelines. If the issue persists, consult the datasheet and application notes for further guidance.
  • Yes, the MAX20766EPE+ can be used in a redundant or fault-tolerant system. The device has a built-in fault detection feature that can be used to detect faults and switch to a redundant system. Additionally, the device's output can be monitored using external circuitry to detect faults and initiate a switchover to a redundant system.
