MAX22088GTG+ - Analog Devices

Description: Home Bus System (HBS) Compatible Transceiver

Download MAX22088GTG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

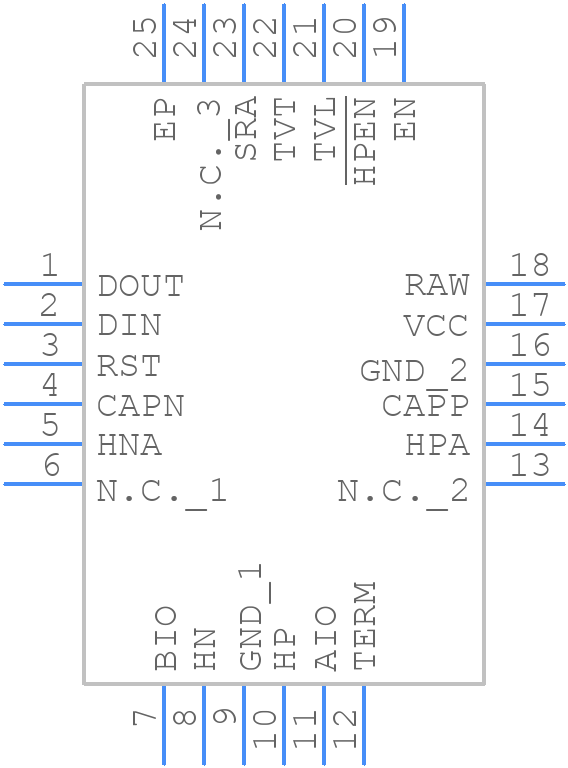

MAX22088GTG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22088GTG+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2444+4C
click to zoom
3D Models
MAX22088GTG+ - Analog Devices - 3D model - Quad Flat No-Lead - T2444+4C
click to zoom

MAX22088GTG+ Details

  • Manufacturer Part Number:

    MAX22088GTG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-05-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Interface IC Type:

    LINE TRANSCEIVER

  • JESD-30 Code:

    S-PQCC-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    1000 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Max:

    24 V

  • Supply Voltage-Min:

    9 V

  • Supply Voltage-Nom:

    9 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1200 ns

  • Width:

    4 mm

MAX22088GTG+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX22088GTG+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a common-mode filter and to decouple the power supplies with capacitors.
  • To optimize the performance of the MAX22088GTG+ in a noisy environment, it's recommended to use shielding, filtering, and grounding techniques. Additionally, using a common-mode filter and decoupling the power supplies with capacitors can help to reduce noise. It's also important to ensure that the device is properly bypassed and that the analog and digital signals are kept separate.
  • The maximum operating temperature range for the MAX22088GTG+ is -40°C to +125°C. However, it's recommended to operate the device within the specified operating temperature range of -20°C to +85°C for optimal performance and reliability.
  • Yes, the MAX22088GTG+ is AEC-Q100 qualified and can be used in automotive applications. However, it's recommended to ensure that the device meets the specific requirements of the application, including temperature range, voltage supply, and electromagnetic compatibility (EMC).
  • To troubleshoot issues with the MAX22088GTG+, it's recommended to follow a systematic approach, including checking the power supply, signal integrity, and PCB layout. Additionally, using oscilloscopes, logic analyzers, and other diagnostic tools can help to identify the root cause of the issue. It's also recommended to consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX22088GTG+ Overview

Use the download button to access the MAX22088GTG+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX22, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
