- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MAX2248ETE+
- Part Number MAX2248ETE+
- Manufacturer Analog Devices
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - T1633+5-2020
- Released Date Oct 22, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAX2248ETE+ Details
-
Manufacturer Part Number:
MAX2248ETE+
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
16-LFCSP-3X3X0.75
-
Package Description:
TOFN-16
-
Pin Count:
16
-
Manufacturer Package Code:
16-LFCSP-3X3X0.75
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
HTS Code:
8542.39.00.01
-
Date Of Intro:
2017-08-09
-
Manufacturer:
Analog Devices Inc
MAX2248ETE+ Frequently Asked Questions (FAQs)
-
A good PCB layout for the MAX2248ETE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the antenna. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device's exposed pad should be connected to the ground plane.
-
To optimize the performance of the MAX2248ETE+, you should consider factors such as the antenna design, PCB layout, and component selection. You can also use simulation tools such as ADS or AWR to model the device's behavior and optimize its performance. Additionally, Analog Devices provides an evaluation board and software tools to help with device evaluation and optimization.
-
The MAX2248ETE+ has an operating temperature range of -40°C to +85°C. However, the device's performance may degrade at higher temperatures, and it's recommended to operate it within a temperature range of -20°C to +70°C for optimal performance.
-
While the MAX2248ETE+ is designed for 50Ω systems, it can be used in non-50Ω systems with some adjustments. You'll need to use impedance-matching networks to match the device's input and output impedances to the system's impedance. However, this may affect the device's performance and require additional components.
-
To troubleshoot issues with the MAX2248ETE+, start by checking the device's power supply, clock, and data signals. Use an oscilloscope to verify the signal integrity and check for any signs of signal degradation or distortion. You can also use Analog Devices' evaluation board and software tools to help identify and debug issues.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MAX2248ETE+ Overview

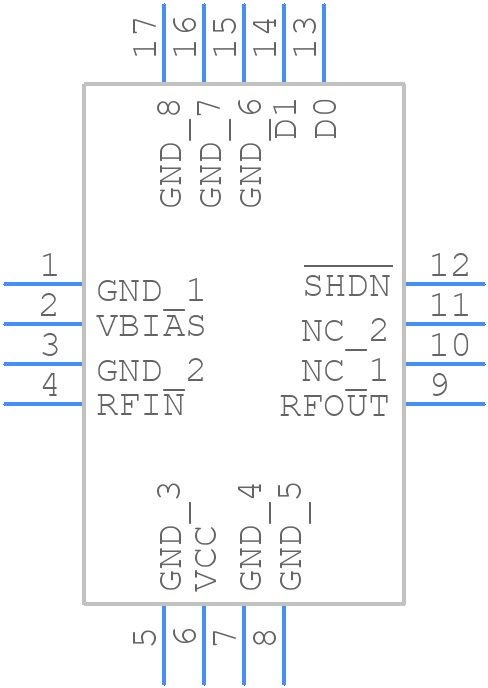

Use the download button to access the MAX2248ETE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX22,
or try a keyword search, such as Other Telecom ICs
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
