MAX22506EASA+ - Analog Devices

Description: 50Mbps Half-Duplex RS-485/RS-422 Transceiver with High EFT Immunity

Download MAX22506EASA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

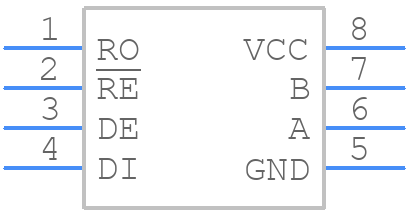

MAX22506EASA+ - Analog Devices - PCB symbol
