MAX22513ATI+T - Analog Devices

Description: Transceiver IC, IO-Link, Surge Protected Dual Driver, DC-DC Buck, 8 to 36 V, TQFN-EP-28 , -40°C ~ 125°C (TA)

Download MAX22513ATI+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

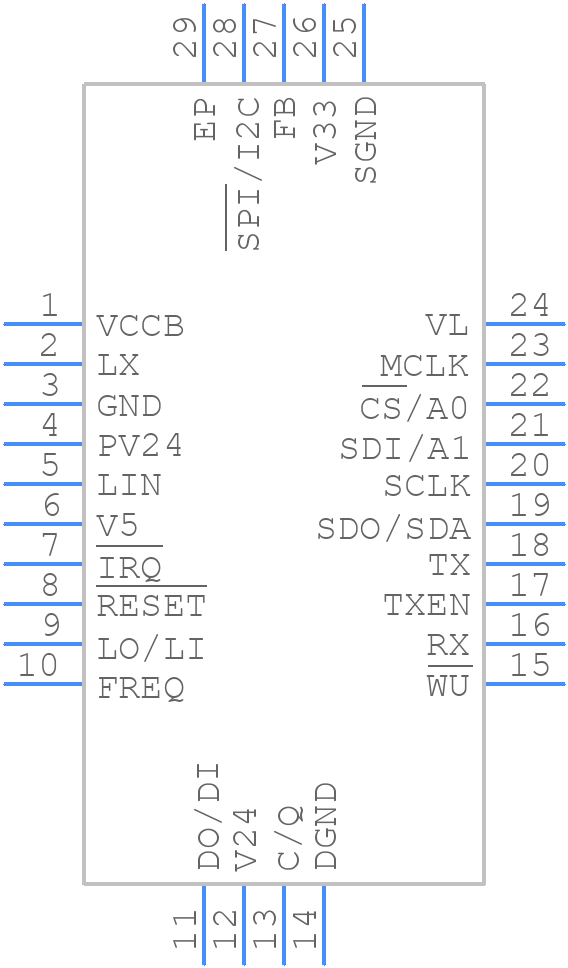

MAX22513ATI+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22513ATI+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T283555+1C
click to zoom
3D Models
MAX22513ATI+T - Analog Devices - 3D model - Quad Flat No-Lead - T283555+1C
click to zoom

MAX22513ATI+T Details

  • Manufacturer Part Number:

    MAX22513ATI+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-LFCSP-3.5X5.5X0.75

  • Package Description:

    TQFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-LFCSP-3.5X5.5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2019-03-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    R-PQCC-N28

  • Length:

    5.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.14X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    SURGE PROTECTION CIRCUIT

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

MAX22513ATI+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX22513ATI+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • The MAX22513ATI+T requires a single 3.3V power supply. It's recommended to power the device using a low-noise, low-dropout regulator. The power sequencing requirements are not critical, but it's recommended to power the device after the analog power supply is stable.
  • The MAX22513ATI+T can support data rates up to 100Mbps, but the actual data rate achieved depends on the specific application, PCB layout, and noise environment.
  • The MAX22513ATI+T is a universal asynchronous receiver-transmitter (UART) that can be configured for different communication protocols using external resistors and capacitors. The specific configuration depends on the protocol requirements, such as data rate, parity, and stop bits.
  • The MAX22513ATI+T has built-in ESD protection diodes on the input pins, which can withstand up to ±15kV of ESD. Additionally, the device has latch-up prevention circuitry to prevent damage from overvoltage or overcurrent conditions.
