MAX22513AWJ+T - Analog Devices

Description: Surge Protected Dual Driver IO-Link Device Transceiver with DC-DC

Download MAX22513AWJ+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

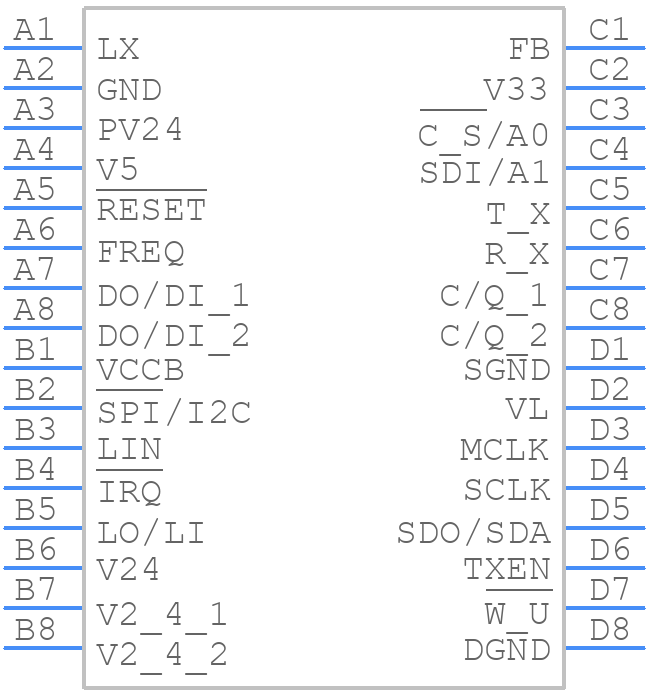

MAX22513AWJ+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22513AWJ+T - Analog Devices PCB footprint - BGA - BGA - W322A4+1
click to zoom
3D Models
MAX22513AWJ+T - Analog Devices - 3D model - BGA - W322A4+1
click to zoom

MAX22513AWJ+T Details

  • Manufacturer Part Number:

    MAX22513AWJ+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-WLCSP-N/A

  • Package Description:

    WLP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2019-03-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-PBGA-B32

  • Length:

    4.157 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA32,4X8,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    SURGE PROTECTION CIRCUIT

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.148 mm
