MAX22531AAP+ - Analog Devices

Description: Field-Side Self-Powered, 4-Channel, 12-bit, Isolated ADC

Download MAX22531AAP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

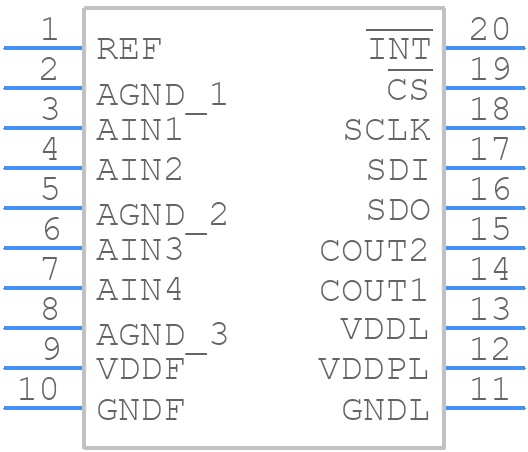

Symbol
MAX22531AAP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22531AAP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-SSOP-5.30_MM
click to zoom
3D Models
MAX22531AAP+ - Analog Devices - 3D model - Small Outline Packages - 20-SSOP-5.30_MM
click to zoom

MAX22531AAP+ Details

  • Manufacturer Part Number:

    MAX22531AAP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-SSOP-5.30_MM

  • Package Description:

    SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-SSOP-5.30_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2021-04-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    1.8 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    7.2 mm

  • Linearity Error-Max (EL):

    0.04882%

  • Number of Analog In Channels:

    4

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Sample Rate:

    0.02 MHz

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.29 mm

MAX22531AAP+ Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the input and output traces separate, use a solid ground plane, and place the device close to the power supply. Additionally, use a ferrite bead or a pi-filter to reduce high-frequency noise on the power supply lines.
  • Make sure to follow the power-up sequence specified in the datasheet, which is VCC first, then EN. Also, ensure that the input voltage is within the recommended range (2.7V to 5.5V) and that the EN pin is properly biased to enable the device.
  • The maximum current rating for the MAX22531AAP+ is 250mA. To calculate the power dissipation, use the formula: Pd = (VIN - VOUT) x IOUT, where Pd is the power dissipation, VIN is the input voltage, VOUT is the output voltage, and IOUT is the output current.
  • Choose an output capacitor with a value between 1uF to 10uF, and a voltage rating that exceeds the maximum output voltage. A low-ESR capacitor (e.g., ceramic or polymer) is recommended to minimize output voltage ripple and ensure stability.
  • The MAX22531AAP+ is rated for operation up to 125°C. To ensure reliable operation, follow proper thermal design practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX22531AAP+ Overview

Use the download button to access the MAX22531AAP+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX22, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
